Lexus ES: Driving Mode Select switch
The driving modes can be selected
to suit driving condition.

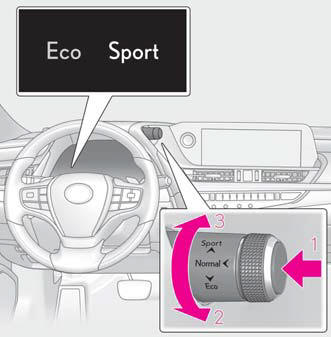

Selecting the driving mode
- Normal mode
Provides an optimal balance of fuel economy,
quietness, and dynamic performance.
Suitable for city driving.
Press the switch to change the normal
mode when not in normal mode.
- Eco drive mode
Helps the driver accelerate in an eco-friendly
manner and improve fuel economy
through moderate throttle characteristics
and by controlling the operation of the air
conditioning system (heating/cooling).
When not in Eco drive mode, if the Driving
Mode Select switch is turned toward you,
the "Eco" indicator comes on.
- Sport mode
Controls the hybrid system to provide
quick, powerful acceleration. This mode is
suitable for when agile driving response is
desired, such as when driving on roads
with many curves.
When not in SPORT mode, if the Driving
Mode Select switch is turned away from
you, the "Sport" indicator comes on.
■Operation of the air conditioning system
in Eco drive mode
Eco drive mode controls the heating/cooling
operations and fan speed of the air conditioning
system to enhance fuel efficiency.
To improve air conditioning performance,
perform the following operations:
- Turn off eco air conditioning mode
- Adjust the fan speed
- Turn off Eco drive mode
■Auto Glide Control
- While driving in Eco drive mode with D
position, selected, releasing the accelerator
pedal will activate Auto Glide Control
under certain conditions. (Auto Glide
Control may activate before the accelerator
pedal is fully released.)
When Auto Glide Control operates, the
electric motor (traction motor) will be
controlled, reducing the deceleration
force and allowing the vehicle to coast,
enhancing fuel economy.
When Auto Glide Control operates, the
AGC indicator light will illuminate.
- Auto Glide Control may not operate in
the following situations:
- When not in Eco drive mode
- When the brake pedal is depressed
- When a shift position other than D is
selected
- When the vehicle speed is approximately
10 mph (15 km/h) or lower
- When the vehicle is accelerating on a
downward slope
- When the PCS (Pre-Collision System) is operating
- When the dynamic radar cruise control
with full-speed range is operating
- When the PKSB (Parking Support Brake)
system is operating
- When the TRAC or VSC system is operating
- When the TRAC or VSC system is disabled
by pressing the switch
■Automatic deactivation of sport mode
If the power switch is turned off after driving
in sport mode, the drive mode will be
changed to normal mode.
■Driving mode pop-up display (12.3-inch
display model)
When the driving mode is changed, the
selected driving mode will be temporarily
displayed on the side display.
