COMPONENTS

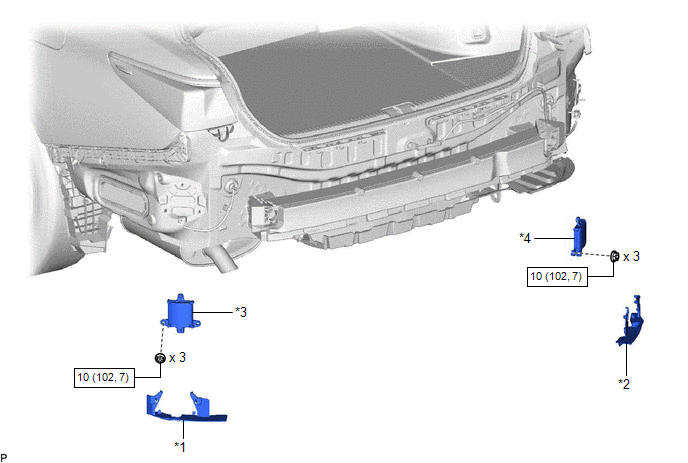

ILLUSTRATION

*1

BLIND SPOT MONITOR COVER LH

*2

BLIND SPOT MONITOR COVER RH

*3

BLIND SPOT MONITOR SENSOR LH

*4

BLIND SPOT MONITOR SENSOR RH

N*m (kgf*cm, ft.*lbf) : Specified torque

-

-
