Lexus ES: Components
COMPONENTS

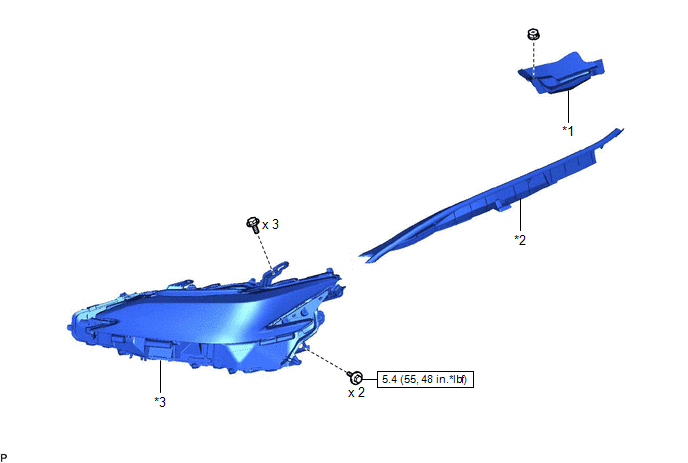

ILLUSTRATION
| *1 | COWL TOP PANEL INSULATOR | *2 | FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY |
| *3 | HEADLIGHT ASSEMBLY | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

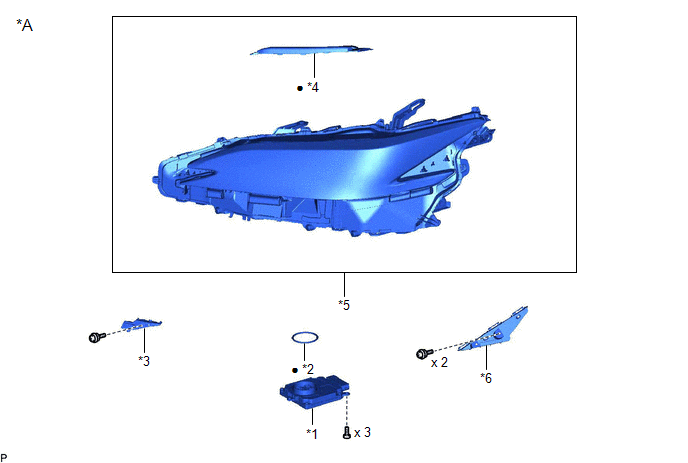

ILLUSTRATION
| *A | for TMC Made | - | - |
| *1 | HEADLIGHT ECU SUB-ASSEMBLY | *2 | HEADLIGHT GASKET |
| *3 | HEADLIGHT RIM | *4 | HEADLIGHT SEAL |
| *5 | HEADLIGHT UNIT ASSEMBLY | *6 | NO. 2 HEADLIGHT FITTING RIM |
| ● | Non-reusable part | - | - |

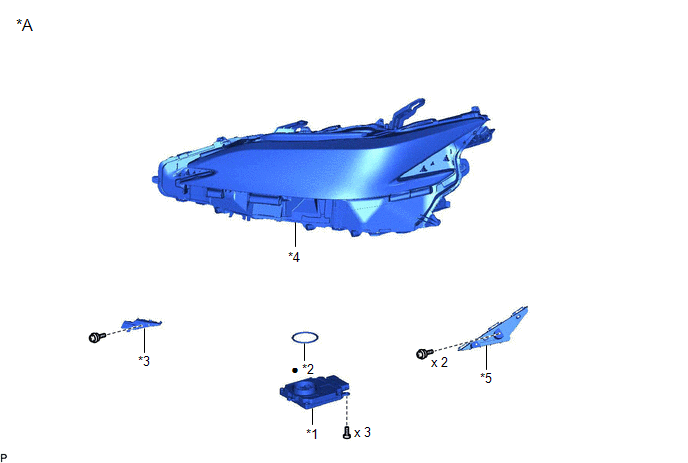

ILLUSTRATION
| *A | for TMMK Made | - | - |
| *1 | HEADLIGHT ECU SUB-ASSEMBLY | *2 | HEADLIGHT GASKET |
| *3 | HEADLIGHT RIM | *4 | HEADLIGHT UNIT ASSEMBLY |
| *5 | NO. 2 HEADLIGHT FITTING RIM | - | - |

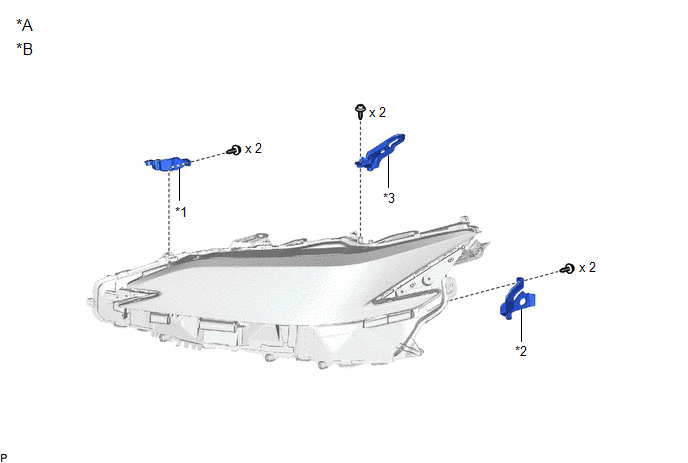

ILLUSTRATION
.png)
| *A | Bracket for Repair | *B | for TMC Made |
| *1 | LOWER HEADLIGHT PROTECTOR RETAINER | *2 | LOWER NO. 2 HEADLIGHT PROTECTOR RETAINER |
| *3 | UPPER HEADLIGHT PROTECTOR RETAINER | - | - |
