Lexus ES (XZ10) Service Manual / Suspension / Rear Suspension / Rear Upper Arm / Components

COMPONENTS

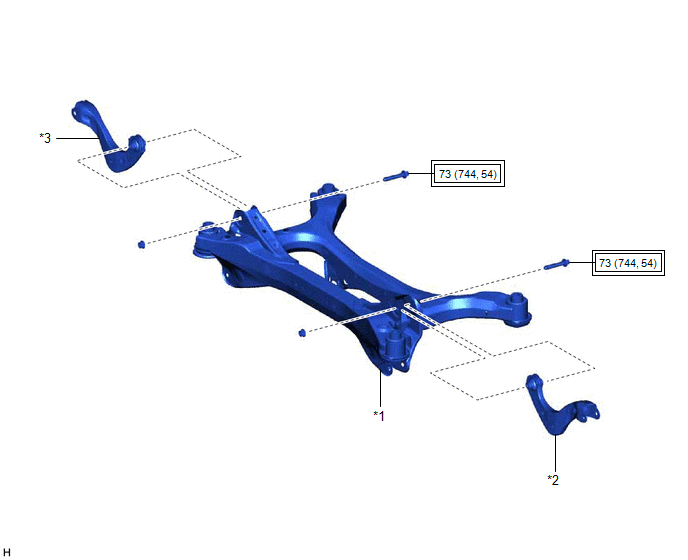

ILLUSTRATION

*1

REAR SUSPENSION MEMBER SUB-ASSEMBLY

*2

REAR UPPER CONTROL ARM ASSEMBLY LH

*3

REAR UPPER CONTROL ARM ASSEMBLY RH

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-
