Lexus ES: Components

COMPONENTS

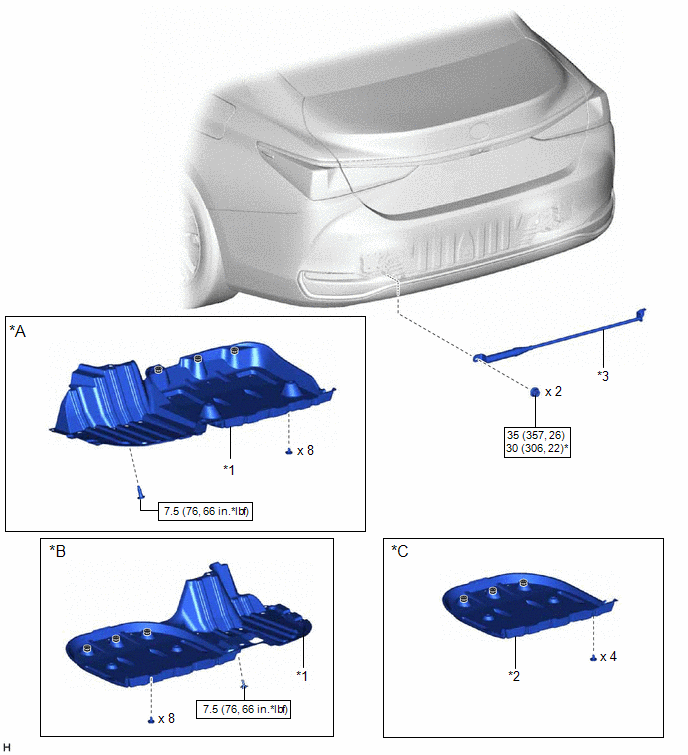

ILLUSTRATION

*A

for A25A-FKS

*B

for A25A-FXS

*C

for 2GR-FKS

-

-

*1

REAR FLOOR SIDE MEMBER COVER

*2

REAR NO. 1 FLOOR BOARD

*3

SUSPENSION TOWER DAMPER

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with a union nut wrench
