Lexus ES: Components

COMPONENTS

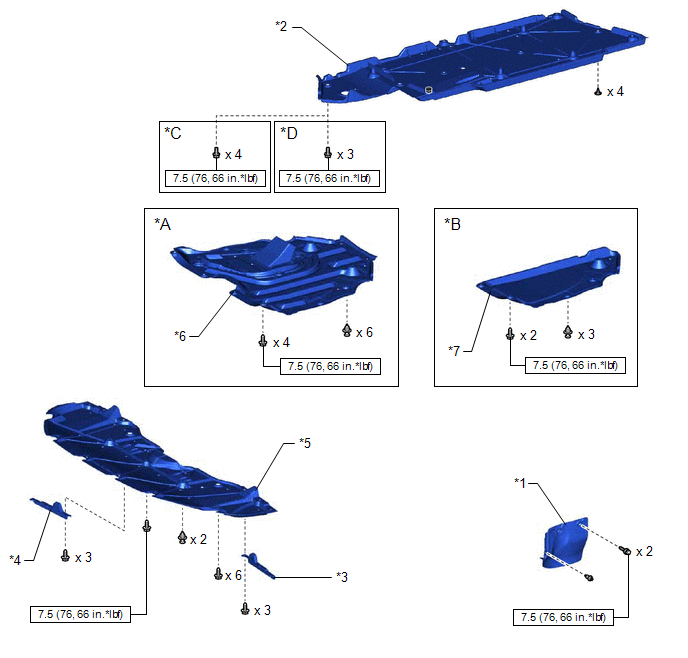

ILLUSTRATION

*A

for A25A-FXS, A25A-FKS

*B

for 2GR-FKS

*C

Type A

*D

Type B

*1

FRONT FENDER APRON SEAL LH

*2

FRONT FLOOR COVER LH

*3

FRONT WHEEL OPENING EXTENSION PAD LH

*4

FRONT WHEEL OPENING EXTENSION PAD RH

*5

NO. 1 ENGINE UNDER COVER

*6

NO. 2 ENGINE UNDER COVER ASSEMBLY

*7

NO. 3 ENGINE UNDER COVER

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

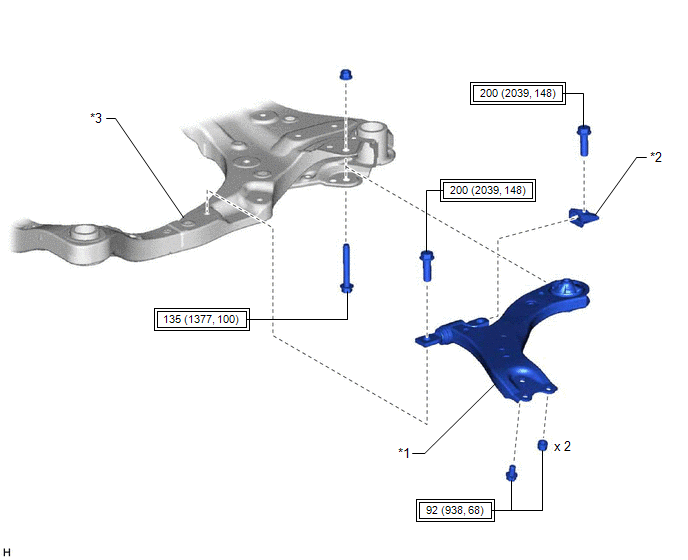

ILLUSTRATION

*1

FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

*2

FRONT LOWER ARM BUSHING STOPPER

*3

FRONT FRAME ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-
