Lexus ES: Components
COMPONENTS

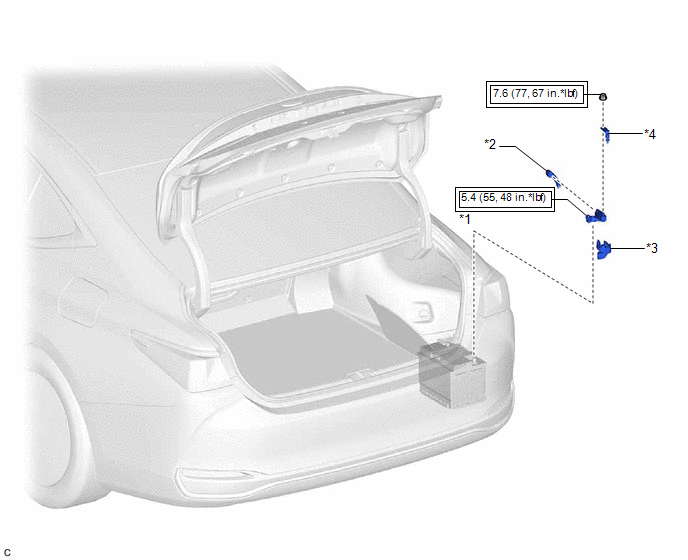

ILLUSTRATION
| *1 | BATTERY STATE SENSOR ASSEMBLY | *2 | WIRE HARNESS |
| *3 | BATTERY CURRENT SENSOR HOLDER | *4 | NO.2 FRAME WIRE |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
