Lexus ES: Components
COMPONENTS
ILLUSTRATION
.png)

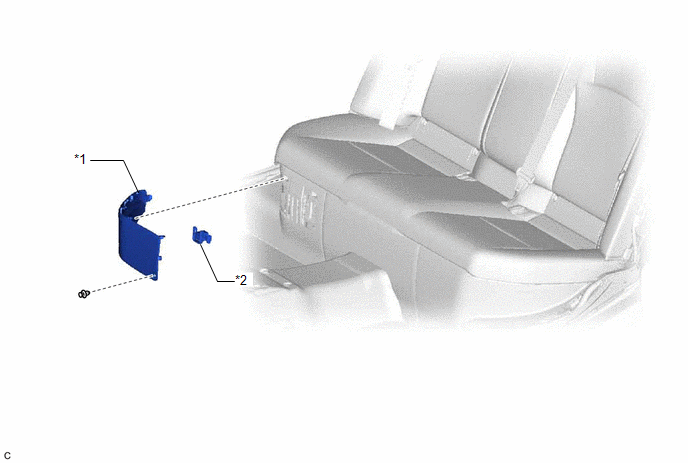

| *1 | BATTERY SERVICE HOLE COVER | *2 | SERVICE PLUG GRIP |
ILLUSTRATION
.png)

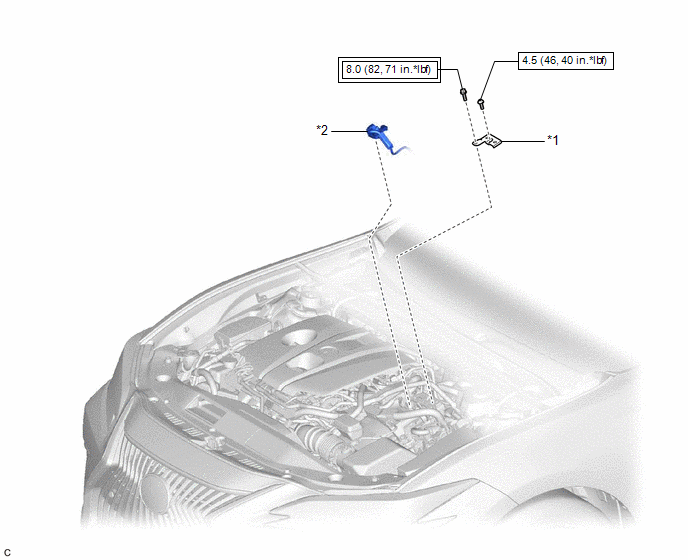

| *1 | CONNECTOR COVER ASSEMBLY | *2 | ENGINE ROOM MAIN WIRE |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | .png) | N*m (kgf*cm, ft.*lbf): Specified torque |

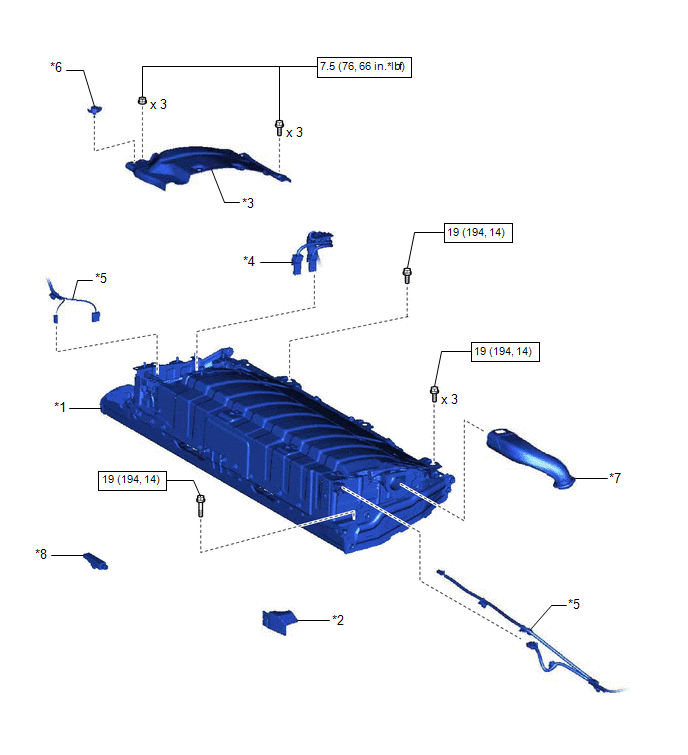

ILLUSTRATION
| *1 | HV BATTERY | *2 | NO. 4 HV BATTERY PROTECTOR |
| *3 | NO. 1 HV BATTERY COVER PANEL RH | *4 | HV FLOOR UNDER WIRE |
| *5 | FLOOR WIRE | *6 | BATTERY COVER LOCK STRIKER |
| *7 | HYBRID BATTERY HOSE ASSEMBLY | *8 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

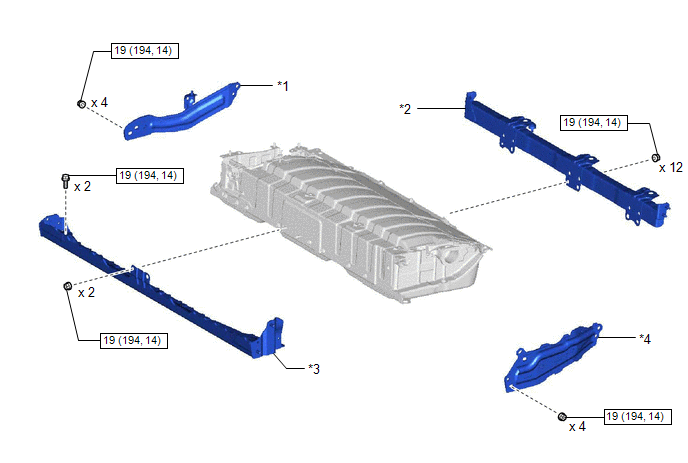

ILLUSTRATION
| *1 | NO. 3 HV BATTERY SHIELD SUB-ASSEMBLY | *2 | NO. 5 HV BATTERY END PLATE SUB-ASSEMBLY |
| *3 | NO. 4 HV BATTERY END PLATE SUB-ASSEMBLY | *4 | NO. 4 HV BATTERY SHIELD SUB-ASSEMBLY |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
