Lexus ES (XZ10) Service Manual / Engine & Hybrid System / A25a-fks (engine Control) / Air Fuel Ratio Sensor (for Sensor 2) / Components

COMPONENTS

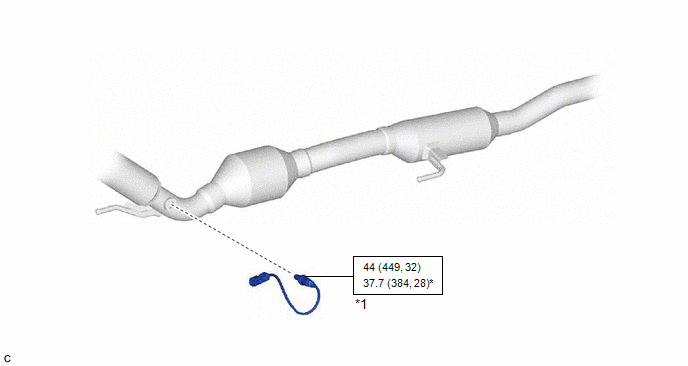

ILLUSTRATION

*1

AIR FUEL RATIO SENSOR

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with SST

READ NEXT:

 Removal

REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during air

 Inspection

INSPECTION PROCEDURE 1. INSPECT AIR FUEL RATIO SENSOR (a) Measure the resistance according to the value(s) in the table below. Standard Resistance: Tester Connection Condition Specified Con

 Installation

INSTALLATION PROCEDURE 1. INSTALL AIR FUEL RATIO SENSOR HINT: Perform "Inspection After Repair" after replacing the air fuel ratio sensor. Click here (a) Using SST, install the air fuel ratio sen
