Lexus ES: Components
COMPONENTS

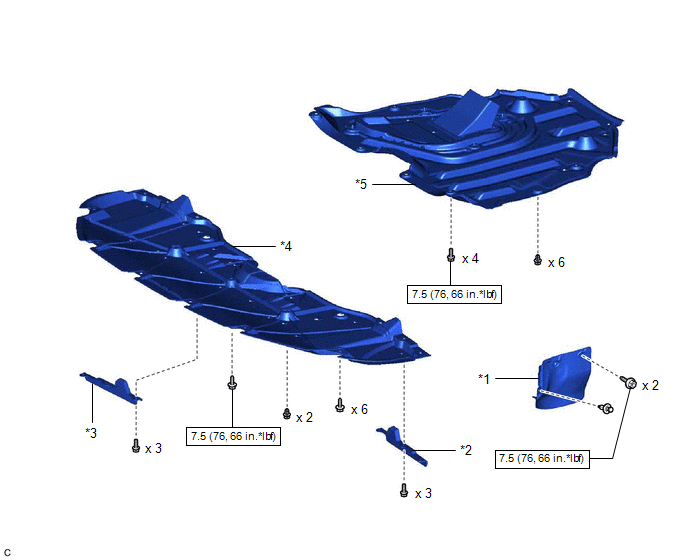

ILLUSTRATION
| *1 | FRONT FENDER APRON SEAL LH | *2 | FRONT WHEEL OPENING EXTENSION PAD LH |
| *3 | FRONT WHEEL OPENING EXTENSION PAD RH | *4 | NO. 1 ENGINE UNDER COVER |
| *5 | NO. 2 ENGINE UNDER COVER ASSEMBLY | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

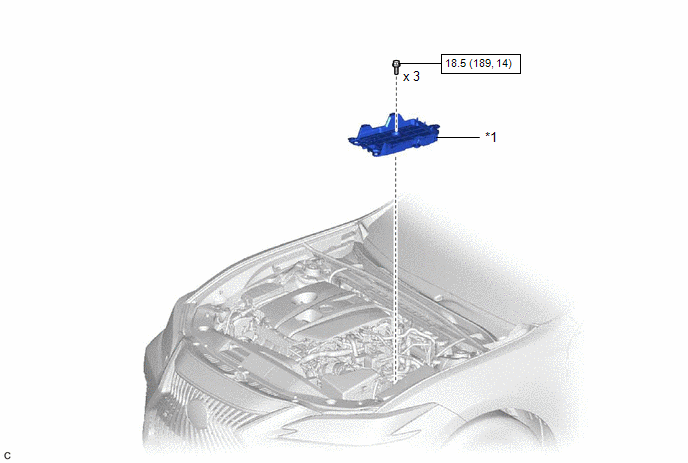

ILLUSTRATION
| *1 | BATTERY CLAMP SUB-ASSEMBLY | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

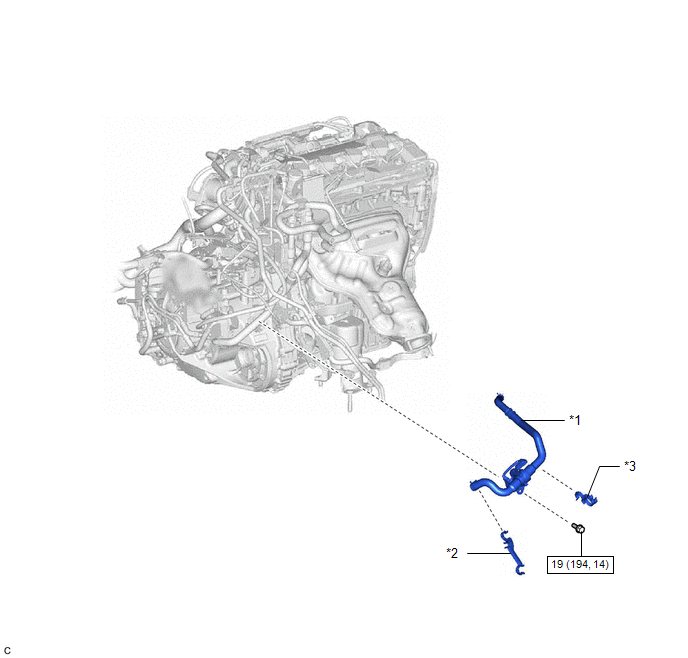

ILLUSTRATION
| *1 | FLOW SHUTTING VALVE (NO. 1 WATER BY-PASS HOSE) | *2 | TRANSMISSION BREATHER CLAMP |
| *3 | HOSE CLAMP | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
