Lexus ES (XZ10) Service Manual / Drivetrain / Axle And Differential / Rear Differential Side Gear Shaft Oil Seal / Components

COMPONENTS

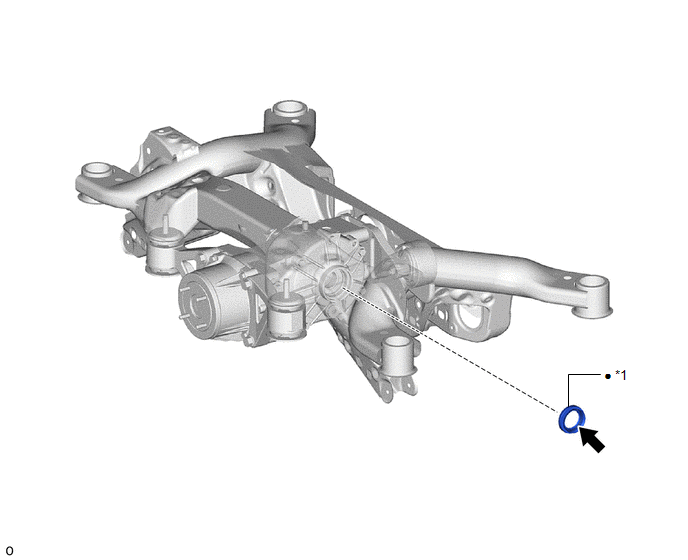

ILLUSTRATION

*1

REAR DRIVE SHAFT OIL SEAL LH

-

-

●

Non-reusable part

MP grease
