COMPONENTS

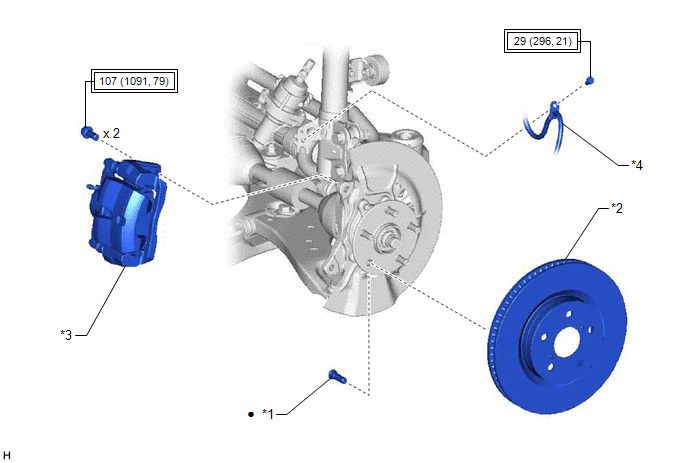

ILLUSTRATION
| *1 | FRONT AXLE HUB BOLT | *2 | FRONT DISC |
| *3 | FRONT DISC BRAKE CALIPER ASSEMBLY | *4 | FRONT FLEXIBLE HOSE |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
