Lexus ES: Components
COMPONENTS
ILLUSTRATION

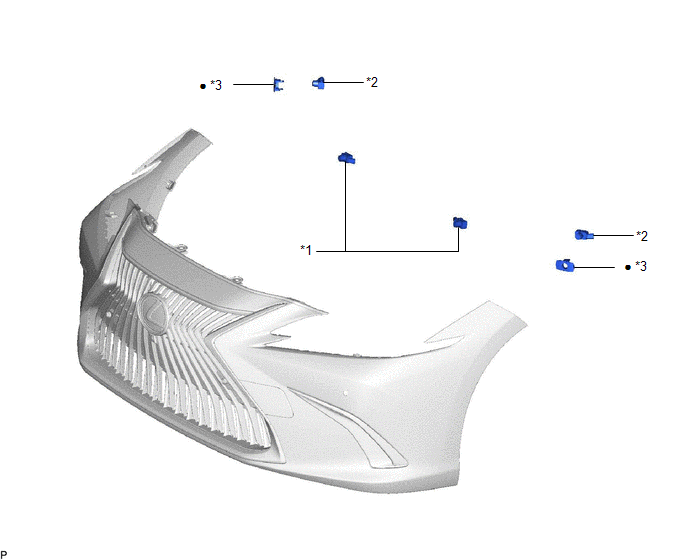

| *1 | FRONT CENTER ULTRASONIC SENSOR | *2 | FRONT CORNER ULTRASONIC SENSOR |
| *3 | FRONT CORNER ULTRASONIC SENSOR RETAINER | - | - |
| ● | Non-reusable part | - | - |
ILLUSTRATION

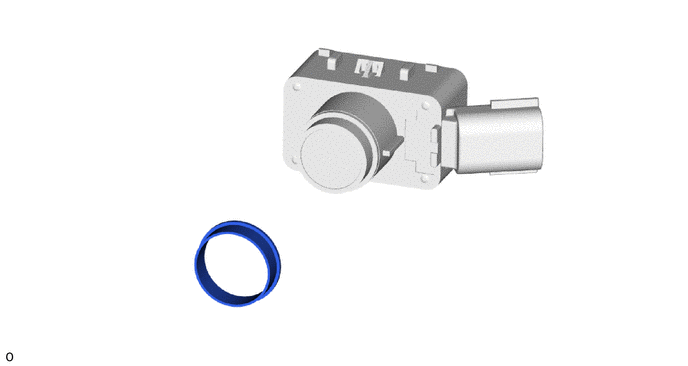

| *1 | ULTRASONIC SENSOR CUSHION SET | - | - |
