Lexus ES: CD/DVD Sound Skips
CAUTION / NOTICE / HINT
NOTICE:
-
Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Navigation System.
Click here
.gif)
-
When replacing the radio receiver assembly, always replace it with a new one. If a radio receiver assembly which was installed to another vehicle is used, the following may occur:
- A communication malfunction DTC may be stored.
- The radio receiver assembly may not operate normally.
PROCEDURE
| 1. | CHECK DISC |

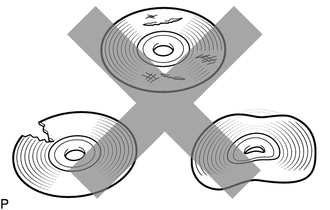

| (a) Check that the disc is not deformed or cracked. OK: No deformation or cracks on the disc |
|
.png)
| NG | .gif) | END (DISC IS FAULTY) |
|
.gif)
| 2. | CHECK DISC |

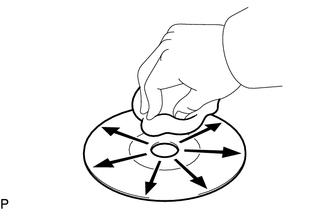

| (a) Check the disc. OK: The disc is clean. NOTICE: Do not use a conventional record cleaner or anti-static preservative. HINT: If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction. |
|
.png)
| NG | | CLEAN DISC |
|
| 3. | REPLACE DISC AND RECHECK |
(a) Replace the disc with a new or known good one and check that the malfunction disappears.
OK:
Malfunction disappears.
| OK | | END (DISC WAS FAULTY) |
|
| 4. | CHECK RADIO RECEIVER ASSEMBLY |
(a) Check the radio receiver assembly installation condition.
(1) Check that the radio receiver assembly is properly installed.
OK:
The radio receiver assembly is properly installed.
| OK | | REPLACE RADIO RECEIVER ASSEMBLY |
| NG | | REINSTALL RADIO RECEIVER ASSEMBLY |
