Lexus ES: Automatic High Beam
The Automatic High Beam uses an
in-vehicle camera sensor to assess
the brightness of streetlights, the
lights of vehicle ahead, etc., and
automatically turns the high beam
on or off as necessary.
WARNING
■Limitations of the Automatic High
Beam
Do not rely on the Automatic High
Beam. Always drive safely, taking care to
observe your surroundings and turning
the high beam on or off manually if necessary.
■To prevent incorrect operation of the
Automatic High Beam system
Do not overload the vehicle.
Activating the Automatic High
Beam system

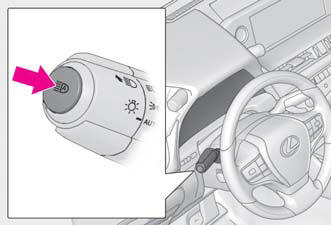

1. Press the Automatic High Beam
switch.

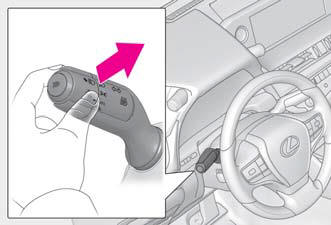

2. Push the lever away from you with
the headlight switch in the
or
position.
The Automatic High Beam indicator will
come on when the headlights are turned on automatically to indicate that the
system
is active.
■High beam automatic turning on or off
conditions
- When all of the following conditions are
met, the high beam will be automatically
turned on (after approximately 1 second):
- Vehicle speed is above approximately 21
mph (34 km/h).
- The area ahead of the vehicle is dark.
- There are no vehicles ahead with headlights
or tail lights turned on.
- There are few streetlights on the road
ahead.
- If any of the following conditions are met,
the high beam will be automatically
turned off:
- Vehicle speed drops below approximately
17 mph (27 km/h).
- The area ahead of the vehicle is not dark.
- Vehicles ahead have headlights or tail
lights turned on.
- There are many streetlights on the road
ahead.
■Camera sensor detection information
- The high beam may not be automatically
turned off in the following situations:
- When oncoming vehicles suddenly
appear from a curve
- When the vehicle is cut in front of by
another vehicle
- When vehicles ahead are hidden from
sight due to repeated curves, road dividers
or roadside trees
- When vehicles ahead appear from the
faraway lane on wide road
- When vehicles ahead have no lights
- The high beam may be turned off if a
vehicle ahead that is using fog lights without using the headlights is
detected.
- House lights, street lights, traffic signals,
and illuminated billboards or signs may
cause the high beam to switch to the low
beams, or the low beams to remain on.
- The following factors may affect the
amount of time taken to turn the high
beam on or off:
- The brightness of headlights, fog lights,
and tail lights of vehicles ahead
- The movement and direction of vehicles
ahead
- When a vehicle ahead only has operational
lights on one side
- When a vehicle ahead is a two-wheeled
vehicle
- The condition of the road (gradient,
curve, condition of the road surface etc.)
- The number of passengers and amount of
luggage
- The high beam may be turned on or off
when the driver does not expect it.
- Bicycles or similar objects may not be
detected.
- In the situations shown below, the system
may not be able to accurately detect surrounding
brightness levels. This may
cause the low beams to remain on or the
high beams to cause problems for pedestrians,
vehicles ahead or other parties. In
these cases, manually switch between the
high and low beams.
- In bad weather (rain, snow, fog, sandstorms
etc.)
- The windshield is obscured by fog, mist,
ice, dirt etc.
- The windshield is cracked or damaged.
- The camera sensor is deformed or dirty.
- When the temperature of the camera
sensor is extremely high
- Surrounding brightness levels are equal
to those of headlights, tail lights or fog
lights.
- When headlights or tail lights of vehicles
ahead are turned off, dirty, changing
color, or not aimed properly
- When the vehicle is hit by water, snow,
dust, etc. from a preceding vehicle
- When driving through an area of intermittently
changing brightness and darkness.
- When frequently and repeatedly driving ascending/descending roads,
or roads
with rough, bumpy or uneven surfaces
(such as stone-paved roads, gravel tracks
etc.).
- When frequently and repeatedly taking
curves or driving on a winding road.
- There is a highly reflective object ahead
of the vehicle, such as a sign or a mirror.
- The back of a vehicle ahead is highly
reflective, such as a container on a truck.
- The vehicle's headlights are damaged or
dirty.
- The vehicle is listing or tilting, due to a flat
tire, a trailer being towed etc.
- The high beam and low beam are repeatedly
being switched between in an
abnormal manner.
- The driver believes that the high beam
may be causing problems or distress to
other drivers or pedestrians nearby.
■Temporarily lowering sensor sensitivity
The sensitivity of the sensor can be temporarily
lowered.
1. Turn the power switch off while the following
conditions are met.
- The headlight switch is in or
.
- The headlight switch lever is in high beam
position.
- Automatic High Beam switch is on.
2. Turn the power switch to ON mode.
3. Within 30 seconds after 2, repeat pulling
the headlight switch lever to the
original position then pushing it to the
high beam position quickly 10 times,
then leave the lever in high beam position.
4. If the sensitivity is changed, the Automatic
High Beam indicator turns on and
off 3 times.
Automatic High Beam (headlights) may
turn on even the vehicle is stopped.
Turning the high beam on/off
manually
■ Switching to low beam
Pull the lever to the original position.
The Automatic High Beam indicator will
turn off.

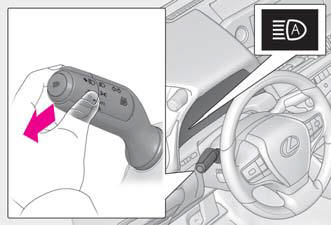

Push the lever away from you to activate
the Automatic High Beam system again.
■ Switching to high beam

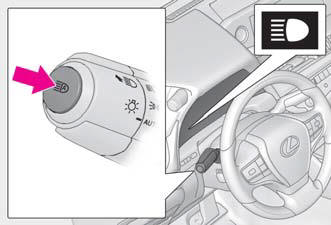

Press the Automatic High Beam
switch.
The Automatic High Beam indicator will
turn off and the high beam indicator will
turn on.
Press the switch to activate the Automatic
High Beam system again.
