Lexus ES: Air Cleaner Filter Element
Lexus ES (XZ10) Service Manual / Engine & Hybrid System / A25a-fks (intake / Exhaust) / Air Cleaner Filter Element
Components
COMPONENTS
ILLUSTRATION

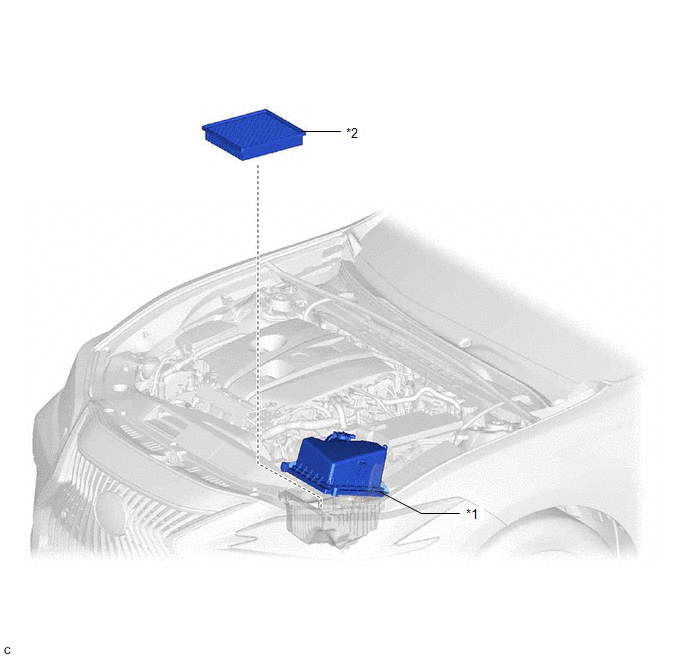

| *1 | AIR CLEANER CAP SUB-ASSEMBLY | *2 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
Removal
REMOVAL
PROCEDURE
1. SEPARATE AIR CLEANER CAP SUB-ASSEMBLY
Click here .gif)
2. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
Click here
3. INSPECT AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
Click here
