Lexus ES: Adjustment

ADJUSTMENT

PROCEDURE

1. INSPECT AND ADJUST BRAKE PEDAL HEIGHT

(a) Remove the front door scuff plate LH.

Click here

(b) Remove the cowl side trim board LH.

Click here

(c) Remove the No. 1 instrument panel under cover sub-assembly.

Click here

(d) Remove the accelerator pedal pad.

Click here

(e) Remove the accelerator pedal assembly.

Click here

(f) Check the brake pedal height.

HINT:

Inspect and adjust the brake pedal height with the floor carpet and front floor mat folded back.

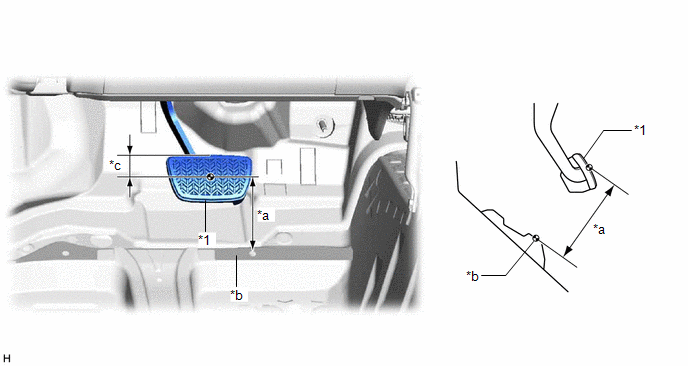

(1) Measure the shortest distance between the brake pedal pad surface and floor panel as shown in the illustration.

*1

Brake Pedal Pad

-

-

*a

Brake Pedal Height

*b

Measuring Plane of Floor Panel

*c

36 mm (1.42 in.)

-

-

Brake Pedal Height from Floor Panel:

147.5 to 161.5 mm (5.81 to 6.36 in.)

HINT:

If the brake pedal height is not as specified, inspect and adjust the push rod length according to the procedure below.

(g) Adjust the push rod length.

(1) Remove the stop light switch assembly.

Click here

*1

Lock Nut

*2

Stop Light Switch Assembly

*a

Floor Panel

*b

Brake Pedal Height

(2) Loosen the lock nut.

(3) Adjust the brake pedal height by turning the push rod.

Brake Pedal Height from Floor Panel:

147.5 to 161.5 mm (5.81 to 6.36 in.)

(4) Tighten the lock nut.

Torque:

26 N·m {265 kgf·cm, 19 ft·lbf}

(5) Install the stop light switch assembly.

Click here

(h) Install the accelerator pedal assembly.

Click here

(i) Install the accelerator pedal pad.

Click here

(j) Install the No. 1 instrument panel under cover sub-assembly.

Click here

(k) Install the cowl side trim board LH.

Click here

(l) Install the front door scuff plate LH.

Click here

2. INSPECT BRAKE PEDAL FREE PLAY

(a) Stop the engine and firmly depress the brake pedal several times until no vacuum is left in the brake booster assembly.

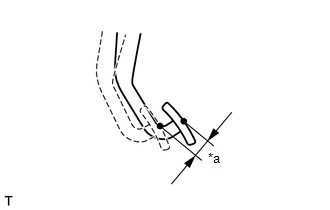

(b) Depress the brake pedal until a slight resistance is felt. Measure the distance as shown in the illustration.

Brake Pedal Free Play:

1.0 to 6.0 mm (0.0394 to 0.236 in.)

HINT:

  • If the brake pedal free play is not as specified, check the stop light switch clearance.

    Click here

  • If the brake pedal free play is as specified, proceed to the Inspect Brake Pedal Reserve Distance procedure.

*a

Brake Pedal Free Play

3. INSPECT BRAKE PEDAL RESERVE DISTANCE

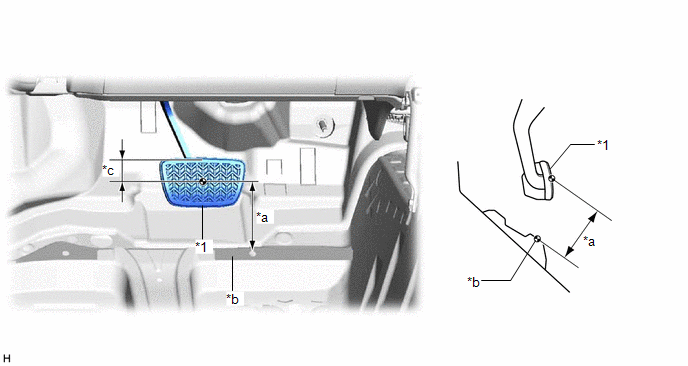

(a) With the engine running, depress the brake pedal and measure the brake pedal reserve distance as shown in the illustration.

*1

Brake Pedal Pad

-

-

*a

Brake Pedal Reserve Distance

*b

Measuring Plane of Floor Panel

*c

36 mm (1.42 in.)

-

-

Brake Pedal Reserve Distance from Floor Panel at 300 N (31 kgf, 67.4 lbf):

81 mm (3.19 in.) or more

HINT:

  • Measure the distance at the same point used for the brake pedal height inspection.
  • If the distance is not as specified, troubleshoot the brake system.

    Click here
