Lexus ES: Abnormal Height Sensor Data at Initialization (B2452)
DESCRIPTION
The headlight ECU sub-assembly LH stores this DTC if the value from the rear height control sensor sub-assembly LH is out of range when performing initialization of the headlight ECU sub-assembly LH, such as when the vehicle is not level or jacked up.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | DTC Output from |
|---|---|---|---|---|
| B2452 | Abnormal Height Sensor Data at Initialization |
|
| AFS |

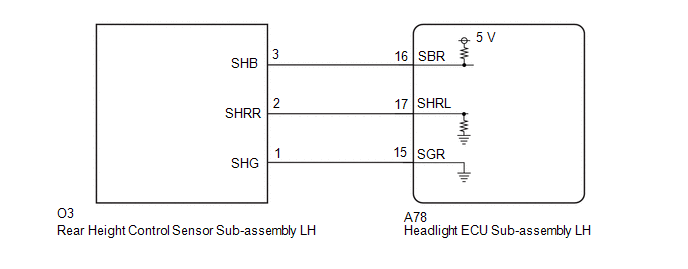

WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
-
If the headlight ECU sub-assembly LH has been replaced, it is necessary to synchronize the vehicle information and initialize the headlight ECU sub-assembly LH.
Click here
.gif)
-
If any of the following are performed, it is necessary to initialize the headlight ECU sub-assembly LH.
Click here
- Replacement of the rear height control sensor sub-assembly LH
- Removal/installation of the rear height control sensor sub-assembly LH
- Work that changes the vehicle height such as replacement of suspension components
- When replacing the headlight ECU sub-assembly LH, always replace it with a new one. If a headlight ECU sub-assembly LH which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.
PROCEDURE
| 1. | INITIALIZATION HEADLIGHT ECU SUB-ASSEMBLY LH |
(a) Perform initialization of the headlight ECU sub-assembly LH.
Click here
|
.gif)
| 2. | CLEAR DTC |
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Body Electrical / AFS / Trouble Codes.
(e) Clear the DTCs.
Body Electrical > AFS > Clear DTCs
|
| 3. | CHECK FOR DTC |
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Body Electrical / AFS / Trouble Codes.
(e) Check for DTCs.
Body Electrical > AFS > Trouble CodesOK:
DTC B2452 is not output.
| OK | .gif) | END (INITIALIZATION WAS NOT COMPLETED) |
|
| 4. | CHECK REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH |
(a) Check the installation condition of the rear height control sensor sub-assembly LH.
OK:
Rear height control sensor sub-assembly LH is installed correctly.
| NG | | INSTALL PARTS CORRECTLY |
|
| 5. | INSPECT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH |
(a) Remove the rear height control sensor sub-assembly LH.
Click here
(b) Inspect the rear height control sensor sub-assembly LH.
Click here
| NG | | REPLACE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH |
|
| 6. | CHECK HARNESS AND CONNECTOR (REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH - HEADLIGHT ECU SUB-ASSEMBLY LH) |
(a) Disconnect the A78 headlight ECU sub-assembly LH connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| O3-3 (SHB) - A78-16 (SBR) | Always | Below 1 Ω |
| O3-2 (SHRR) - A78-17 (SHRL) | Always | Below 1 Ω |
| O3-1 (SHG) - A78-15 (SGR) | Always | Below 1 Ω |
| O3-3 (SHB) or A78-16 (SBR) - Body ground | Always | 10 kΩ or higher |
| O3-2 (SHRR) or A78-17 (SHRL) - Body ground | Always | 10 kΩ or higher |
| OK | | REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH |
| NG | | REPAIR OR REPLACE HARNESS OR CONNECTOR |
