Lexus ES: Transmission Control Switch Circuit

Lexus ES (XZ10) Service Manual / Drivetrain / Ub80f (automatic Transmission / Transaxle) / Automatic Transaxle System / Transmission Control Switch Circuit

DESCRIPTION

When the shift lever is in S and moved toward "-" or "+", it is possible to select different shift ranges (S1 to S8).

Moving the shift lever toward "+" increases the shift range by one, and moving the shift lever toward "-" decreases the shift range by one.

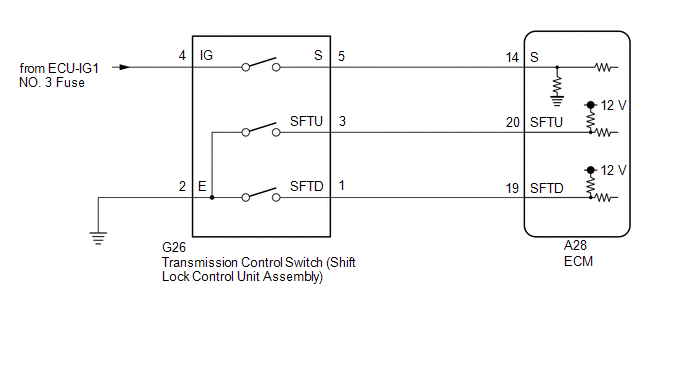

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE

1.

READ VALUE USING TECHSTREAM (Shift SW Status (S Range))

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Data List / Shift SW Status (S Range).

(e) Read the Data List according to the display on the Techstream.

Powertrain > Engine > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

Shift SW Status (S Range)

Sport (S) mode select switch status

ON or OFF
  • ON: Shift lever in S, "+" or "-"
  • OFF: Shift lever not in S, "+" or "-"

-
Powertrain > Engine > Data List

Tester Display

Shift SW Status (S Range)

Result

Proceed to

Data List value is normal

A

Data List value is not normal

B
B

GO TO STEP 6

A

2.

READ VALUE USING TECHSTREAM (SPORT SHIFT UP SW AND SPORT SHIFT DOWN SW)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Data List / Sport Shift Up SW and Sport Shift Down SW.

(e) Read the Data List according to the display on the Techstream.

Powertrain > Engine > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

Sport Shift Up SW

Sport shift up switch status

ON or OFF
  • ON: Shift lever held in "+" or "+" shift paddle switch operated
  • OFF: Shift lever not held in "+" and "+" shift paddle switch released

-

Sport Shift Down SW

Sport shift down switch status

ON or OFF
  • ON: Shift lever held in "-" or "-" shift paddle switch operated
  • OFF: Shift lever not held in "-" and "-" shift paddle switch released

-
Powertrain > Engine > Data List

Tester Display

Sport Shift Up SW

Sport Shift Down SW

Result

Proceed to

Data List values are normal

A

Data List values are not normal

B
A

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

B

3.

INSPECT TRANSMISSION CONTROL SWITCH (SHIFT LOCK CONTROL UNIT ASSEMBLY)

(a) Disconnect the G26 transmission control switch connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 (SFTU) - 2 (E)

Shift lever held in "+" (Up shift)

Below 1 Ω

Shift lever not held in "+" (Up shift)

10 kΩ or higher

1 (SFTD) - 2 (E)

Shift lever held in "-" (Down shift)

Below 1 Ω

Shift lever not held in "-" (Down shift)

10 kΩ or higher

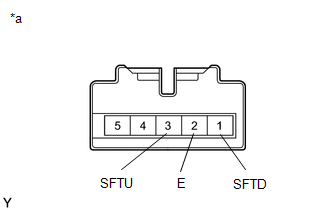

*a

Component without harness connected

(Transmission Control Switch (Shift Lock Control Unit Assembly))
NG

REPLACE TRANSMISSION CONTROL SWITCH (SHIFT LOCK CONTROL UNIT ASSEMBLY)

OK

4.

CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - BODY GROUND)

(a) Disconnect the G26 transmission control switch connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G26-2 (E) - Body ground

Always

Below 1 Ω
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION CONTROL SWITCH - BODY GROUND)
OK

5.

CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - ECM)

(a) Connect the G26 transmission control switch connector.

(b) Disconnect the A28 ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A28-20 (SFTU) - Body ground

Shift lever held in "+" (Up shift)

Below 1 Ω

A28-20 (SFTU) - Body ground

Shift lever not held in "+" (Up shift)

10 kΩ or higher

A28-19 (SFTD) - Body ground

Shift lever held in "-" (Down shift)

Below 1 Ω

A28-19 (SFTD) - Body ground

Shift lever not held in "-" (Down shift)

10 kΩ or higher
OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION CONTROL SWITCH - ECM)

6.

INSPECT TRANSMISSION CONTROL SWITCH (SHIFT LOCK CONTROL UNIT ASSEMBLY)

(a) Disconnect the G26 transmission control switch connector.

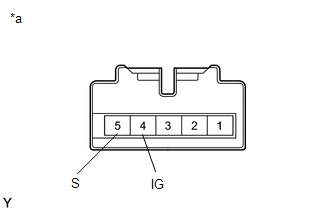

*a

Component without harness connected

(Transmission Control Switch (Shift Lock Control Unit Assembly))

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

4 (IG) - 5 (S)

Shift lever in S, "+" or "-"

Below 1 Ω

Shift lever not in S, "+" or "-"

10 kΩ or higher
NG

REPLACE TRANSMISSION CONTROL SWITCH (SHIFT LOCK CONTROL UNIT ASSEMBLY)

OK

7.

CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH (POWER SOURCE))

(a) Disconnect the G26 transmission control switch connector.

(b) Turn the engine switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

G26-4 (IG) - Body ground

Engine switch on (IG)

11 to 14 V
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION CONTROL SWITCH (POWER SOURCE))
OK

8.

CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - ECM)

(a) Disconnect the G26 transmission control switch connector.

(b) Disconnect the A28 ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

G26-5 (S) - A28-14 (S)

Always

Below 1 Ω

G26-5 (S) or A28-14 (S) - Body ground and other terminals

Always

10 kΩ or higher
OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION CONTROL SWITCH - ECM)
