Lexus ES: Tire Pressure Warning Light Circuit

DESCRIPTION

If the tire pressure warning ECU and receiver detects any problems, the tire pressure warning light blinks for 1 minute then illuminates, and tire pressure monitoring is disabled at the same time. At this time, the ECU stores a DTC in memory.

The tire pressure warning ECU and receiver sends the tire pressure warning light illumination request signal to the main body ECU (multiplex network body ECU) via a direct line. The main body ECU (multiplex network body ECU) then sends the signal to the combination meter assembly via CAN communication.

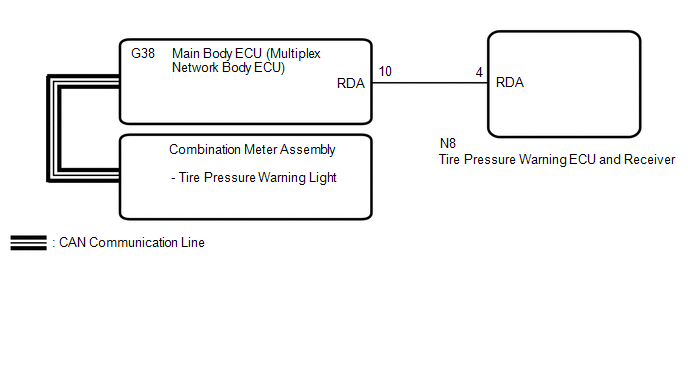

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • When replacing the tire pressure warning ECU and receiver, read the transmitter IDs and number of the transmitters (4 or 5) stored in the old ECU using the Techstream and write them down before removal.
  • It is necessary to perform initialization after registration of the transmitter IDs into the tire pressure warning ECU and receiver if the ECU has been replaced.

PROCEDURE

1.

CHECK FOR DTC (CAN COMMUNICATION SYSTEM)

(a) Check if CAN communication system DTCs are output.

Click here

Result

Proceed to

DTCs are not output

A

DTCs are output

B

B

GO TO CAN COMMUNICATION SYSTEM

A

2.

CHECK DTC OUTPUT (B1247)

(a) Clear the DTCs.

Chassis > Tire Pressure Monitor > Clear DTCs

(b) Turn the engine switch off.

(c) Turn the engine switch on (IG).

(d) Check for DTCs.

Chassis > Tire Pressure Monitor > Trouble Codes

Result

Proceed to

B1247 is not output

A

B1247 is output

B

B

GO TO DTC (B1247)

A

3.

CHECK OPERATION OF TIRE PRESSURE WARNING LIGHT (ACTIVE TEST)

(a) Turn the engine switch off.

(b) Connect the Techstream to the DLC3.

(c) Turn the engine switch on (IG).

(d) Turn the Techstream on.

(e) Enter the following menus: Body Electrical / Combination Meter / Active Test.

(f) Check the condition of the tire pressure warning light using the Techstream.

Body Electrical > Combination Meter > Active Test

Tester Display

Measurement Item

Control Range

Diagnostic Note

Tire Pressure Warning System Indicator

Tire pressure warning light

OFF or ON

-

Body Electrical > Combination Meter > Active Test

Tester Display

Tire Pressure Warning System Indicator

OK:

The tire pressure warning light turns on or off in accordance with the Techstream operation.

OK

REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER

NG

GO TO METER / GAUGE SYSTEM
