Lexus ES: System Diagram

SYSTEM DIAGRAM

READ NEXT:

 System Diagram

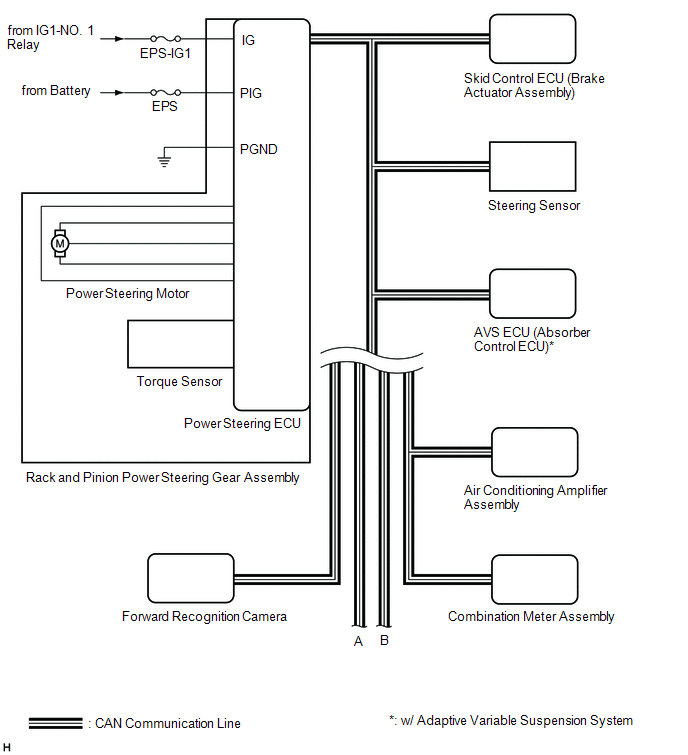

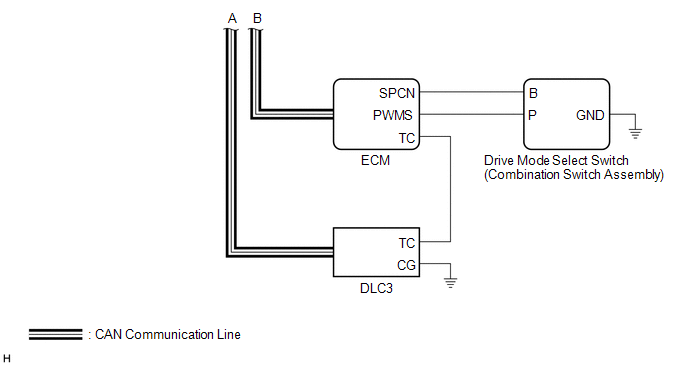

SYSTEM DIAGRAM

 System Description

SYSTEM DESCRIPTION DESCRIPTION (a) The power steering ECU (rack and pinion power steering gear assembly) generates the necessary steering assist torque by calculating the steering assist force and con

 Customize Parameters

CUSTOMIZE PARAMETERS DRIVE MODE CUSTOMIZATION (w/ Adaptive Variable Suspension System) When the drive mode is switched to "CUSTOM" mode using the drive mode select switch (combination switch assembly)
