Lexus ES: Steering Position Sensor (B2414)
DESCRIPTION
The headlight ECU sub-assembly LH receives steering angle signals from the steering sensor via CAN communication and performs light control.
for LED Type Turn Signal Light| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | DTC Output from |
|---|---|---|---|---|
| B2414 | Steering Position Sensor |
| Electronically controlled brake system | AFS |
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | DTC Output from |
|---|---|---|---|---|
| B2414 | Steering Position Sensor |
| Electronically controlled brake system | HL AutoLeveling |

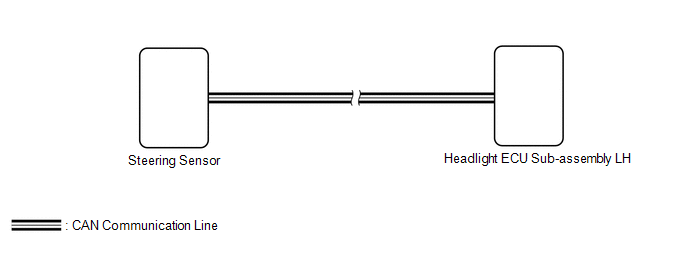

WIRING DIAGRAM
PROCEDURE
| 1. | CONFIRM MODEL |
(a) Choose the model to be inspected.
| Result | Proceed to |
|---|---|
| for LED Type Turn Signal Light | A |
| for Bulb Type Turn Signal Light | B |
| B | .gif) | GO TO STEP 4 |
|
.gif)
| 2. | CLEAR DTC |
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Body Electrical / AFS / Trouble Codes.
(e) Clear the DTCs.
Body Electrical > AFS > Clear DTCs
|
| 3. | CHECK FOR DTC |
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Wait 10 seconds or more.
(d) Turn the Techstream on.
(e) Enter the following menus: Body Electrical / AFS / Trouble Codes.
(f) Check for DTCs.
Body Electrical > AFS > Trouble CodesOK:
DTC B2414 is not output.
| OK | | USE SIMULATION METHOD TO CHECK |
| NG | | GO TO ELECTRONICALLY CONTROLLED BRAKE SYSTEM |
| 4. | CLEAR DTC |
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Body Electrical / HL AutoLeveling / Trouble Codes.
(e) Clear the DTCs.
Body Electrical > HL AutoLeveling > Clear DTCs
|
| 5. | CHECK FOR DTC |
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Wait 10 seconds or more.
(d) Turn the Techstream on.
(e) Enter the following menus: Body Electrical / HL AutoLeveling / Trouble Codes.
(f) Check for DTCs.
Body Electrical > HL AutoLeveling > Trouble CodesOK:
DTC B2414 is not output.
| OK | | USE SIMULATION METHOD TO CHECK |
| NG | | GO TO ELECTRONICALLY CONTROLLED BRAKE SYSTEM |
