Lexus ES: Right Rear Wheel Speed Sensor Circuit Short to Battery (C051212)

Lexus ES (XZ10) Service Manual / Brake / Brake Control / Dynamic Control Systems / Electronically Controlled Brake System (for Gasoline Model) / Right Rear Wheel Speed Sensor Circuit Short to Battery (C051212)

DESCRIPTION

Each speed sensor detects wheel speed and sends signals to the skid control ECU (brake actuator assembly). These signals are used by the ABS control.

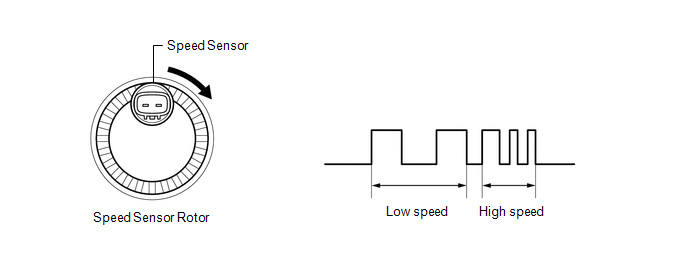

The speed sensor detects the magnetic fields of the speed sensor rotor as it rotates and outputs a pulse signal.

The frequency of the pulse varies in accordance with the rotational speed of the speed sensor rotor and the system uses this to determine the wheel speed.

HINT:

The following example shows a pulse signal that is output when the wire harness connectors are connected to the speed sensors and skid control ECU (brake actuator assembly).

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

C051212

Right Rear Wheel Speed Sensor Circuit Short to Battery

A short to +B in the speed sensor signal circuit is detected for 0.12 seconds or more.
  • Rear speed sensor RH (rear axle hub and bearing assembly RH)
  • Wire harness or connector
  • Skid control sensor wire RH (No. 1 parking brake wire assembly)
  • Skid control ECU (brake actuator assembly)

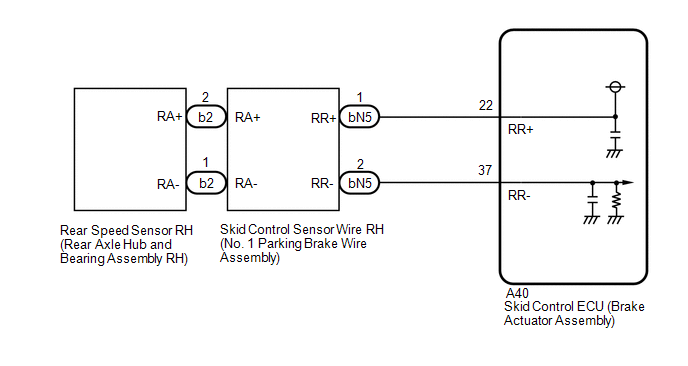

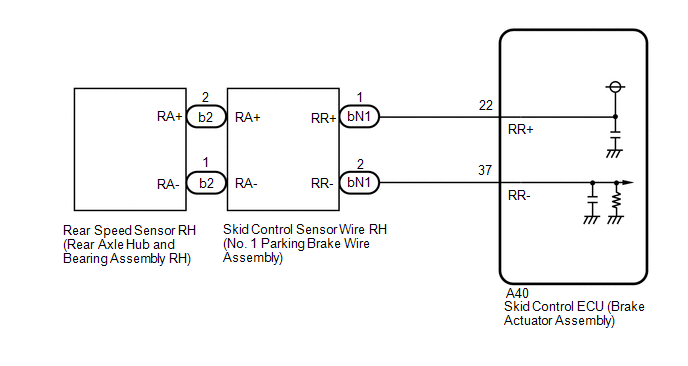

WIRING DIAGRAM

w/o AVS w/ AVS

CAUTION / NOTICE / HINT

NOTICE:

  • After replacing the skid control ECU (brake actuator assembly), perform acceleration sensor zero point calibration and store system information memorization.

    Click here

  • After replacing or removing and installing a speed sensor, perform Dealer Mode (Signal Check) inspection to confirm that the speed sensors are operating correctly.

    Click here

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (SENSOR GROUND CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

*a

Front view of skid control sensor wire RH (No. 1 parking brake wire assembly)

(to Rear Speed Sensor RH (Rear Axle Hub and Bearing Assembly RH))

(b) Disconnect the b2 rear speed sensor RH (rear axle hub and bearing assembly RH) connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Turn the engine switch on (IG).

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

b2-2 (RA+) - b2-1 (RA-)

Engine switch on (IG)

11 to 14 V

Result

Proceed to

OK

A

NG (w/o AVS)

B

NG (w/ AVS)

C
A

REPLACE REAR AXLE HUB AND BEARING ASSEMBLY RH

C

GO TO STEP 5

B

2.

CHECK HARNESS AND CONNECTOR (SENSOR GROUND CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

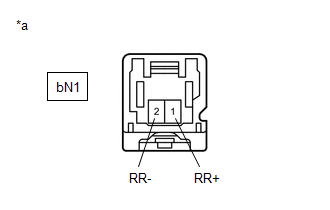

*a

Front view of wire harness connector

(to Skid Control Sensor Wire RH (No. 1 Parking Brake Wire Assembly))

(b) Disconnect the bN1 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Turn the engine switch on (IG).

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

bN1-1 (RR+) - bN1-2 (RR-)

Engine switch on (IG)

11 to 14 V
OK

REPLACE NO. 1 PARKING BRAKE WIRE ASSEMBLY
NG

3.

CHECK HARNESS AND CONNECTOR (NO. 1 PARKING BRAKE WIRE ASSEMBLY - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

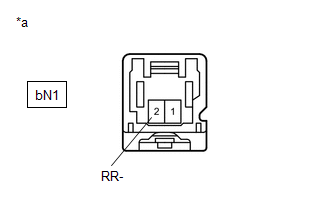

*a

Front view of wire harness connector

(to Skid Control Sensor Wire RH (No. 1 Parking Brake Wire Assembly))

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the bN1 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

bN1-2 (RR-) - Body ground

Always

Below 1.5 V
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

4.

CHECK HARNESS AND CONNECTOR (NO. 1 PARKING BRAKE WIRE ASSEMBLY - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the bN1 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

bN1-1 (RR+) or A40-22 (RR+) - bN1-2 (RR-) or A40-37 (RR-)

Always

10 kΩ or higher
OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.

CHECK HARNESS AND CONNECTOR (SENSOR GROUND CIRCUIT)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

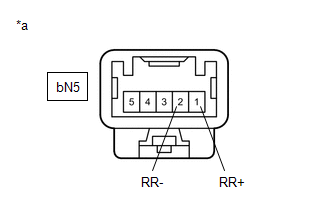

*a

Front view of wire harness connector

(to Skid Control Sensor Wire RH (No. 1 Parking Brake Wire Assembly))

(b) Disconnect the bN5 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Turn the engine switch on (IG).

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

bN5-1 (RR+) - bN5-2 (RR-)

Engine switch on (IG)

11 to 14 V
OK

REPLACE NO. 1 PARKING BRAKE WIRE ASSEMBLY
NG

6.

CHECK HARNESS AND CONNECTOR (NO. 1 PARKING BRAKE WIRE ASSEMBLY - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

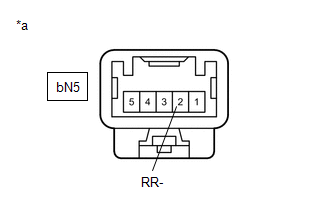

*a

Front view of wire harness connector

(to Skid Control Sensor Wire RH (No. 1 Parking Brake Wire Assembly))

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the bN5 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

bN5-2 (RR-) - Body ground

Always

Below 1.5 V
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

7.

CHECK HARNESS AND CONNECTOR (NO. 1 PARKING BRAKE WIRE ASSEMBLY - BRAKE ACTUATOR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.

(b) Disconnect the A40 skid control ECU (brake actuator assembly) connector.

(c) Disconnect the bN5 skid control sensor wire RH (No. 1 parking brake wire assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

bN5-1 (RR+) or A40-22 (RR+) - bN5-2 (RR-) or A40-37 (RR-)

Always

10 kΩ or higher
OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
