Lexus ES: Replacement
REPLACEMENT
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front drive shaft oil seal LH or front drive shaft oil seal RH removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Front wheel alignment adjustment |
|
| |
PROCEDURE
1. REMOVE FRONT DRIVE SHAFT ASSEMBLY
Click here .gif)
2. REMOVE FRONT DRIVE SHAFT OIL SEAL LH

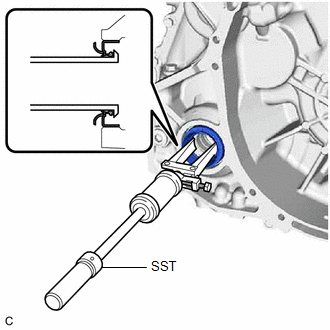

| (a) Using SST, remove the front drive shaft oil seal LH from the hybrid vehicle transaxle assembly. SST: 09308-00010 NOTICE: Be careful not to damage the hybrid vehicle transaxle assembly. |
|
3. REMOVE FRONT DRIVE SHAFT OIL SEAL RH
| (a) Using SST, remove the front drive shaft oil seal RH from the hybrid vehicle transaxle assembly. SST: 09308-00010 NOTICE: Be careful not to damage the hybrid vehicle transaxle assembly. |
|
4. INSTALL FRONT DRIVE SHAFT OIL SEAL RH

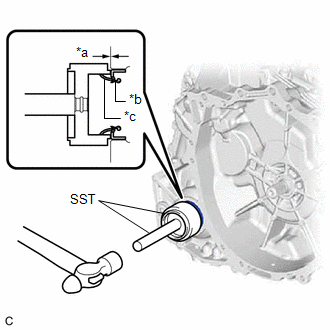

(a) Using SST and a hammer, install a new front drive shaft oil seal RH to the hybrid vehicle transaxle assembly.
| *a | Depth |
| *b | Inner Lip |
| *c | Outer Lip |
SST: 09316-10010
SST: 09950-70010
09951-07100
Standard Depth:
-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)
NOTICE:
-

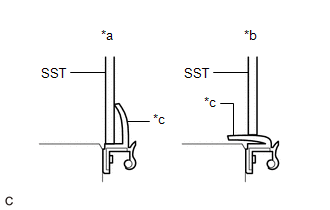

Make sure that the outer lip of the front drive shaft oil seal RH is not pinched by SST.
*a
Correct
*b
Incorrect
*c
Outer Lip
- Do not allow foreign matter to attach to the inner lip and outer lip of the front drive shaft oil seal RH.
- Do not install the front drive shaft oil seal RH at an angle.
- Do not remove the grease from the inner lip and outer lip of the front drive shaft oil seal RH.
5. INSTALL FRONT DRIVE SHAFT OIL SEAL LH

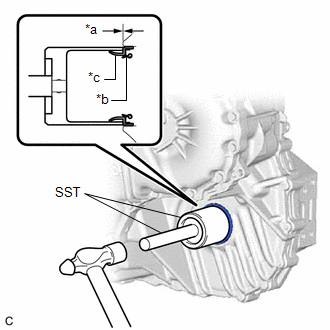

(a) Using SST and a hammer, install a new front drive shaft oil seal LH to the hybrid vehicle transaxle assembly.
| *a | Depth |
| *b | Inner Lip |
| *c | Outer Lip |
SST: 09649-17010
SST: 09950-70010
09951-07100
Standard Depth:
-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)
NOTICE:
-
Make sure that the outer lip of the front drive shaft oil seal LH is not pinched by SST.
*a
Correct
*b
Incorrect
*c
Outer Lip
- Do not allow foreign matter to attach to the inner lip and outer lip of the front drive shaft oil seal LH.
- Do not install the front drive shaft oil seal LH at an angle.
- Do not remove the grease from the inner lip and outer lip of the front drive shaft oil seal LH.
6. INSTALL FRONT DRIVE SHAFT ASSEMBLY
Click here
