Lexus ES: Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during telephone and GPS antenna cord removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure

Necessary Procedures

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

*: When performing learning using the Techstream.

Click here

Disconnect cable from negative auxiliary battery terminal

Perform steering sensor zero point calibration

Lane Control System

Pre-collision System

Parking Support Brake System*

Lighting System

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

Initialize power trunk lid system

Power Trunk Lid System

Removal/installation of the front passenger seat

Zero point calibration (Occupant Classification System)

  • Occupant Classification System
  • Passenger airbag ON/OFF indicator
  • Airbag system (Front passenger side)
  • Seat belt warning system (Front passenger)

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here

NOTICE:

  • After the power switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal. (for Audio and Visual System)
  • After the power switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal. (for Navigation System)
Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure

Necessary Procedures

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

*: When performing learning using the Techstream.

Click here

Disconnect cable from negative battery terminal

Perform steering sensor zero point calibration

Lane Control System

Pre-collision System

Parking Support Brake System*

Lighting System

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

Initialize power trunk lid system

Power Trunk Lid System

Removal/installation of the front passenger seat

Zero point calibration (Occupant Classification System)

  • Occupant Classification System
  • Passenger airbag ON/OFF indicator
  • Airbag system (Front passenger side)
  • Seat belt warning system (Front passenger)

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here

NOTICE:

  • After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Audio and Visual System)
  • After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Navigation System)

PROCEDURE

1. REMOVE ROOF HEADLINING ASSEMBLY

Click here

2. REMOVE TELEPHONE AND GPS ANTENNA CORD

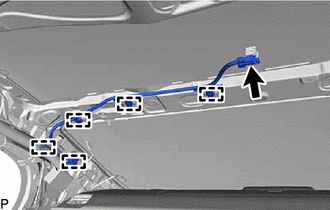

(a) Disconnect the connector.

(b) Disengage the 5 clamps to remove the telephone and GPS antenna cord.
