Lexus ES (XZ10) Service Manual / Vehicle Interior / Lighting (ext) / Side Turn Signal Light Assembly / Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during side turn signal light assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link
  • Side television camera assembly LH
  • Side television camera assembly RH

Side television camera view adjustment

Panoramic View Monitor System (for HV Model)

for Initialization

for Calibration
Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link
  • Side television camera assembly LH
  • Side television camera assembly RH

Side television camera view adjustment

Panoramic View Monitor System (for Gasoline Model)

for Initialization

for Calibration

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE OUTER MIRROR

Click here

2. REMOVE OUTER MIRROR COVER ASSEMBLY

Click here

3. REMOVE OUTER MIRROR LOWER COVER

Click here

4. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY

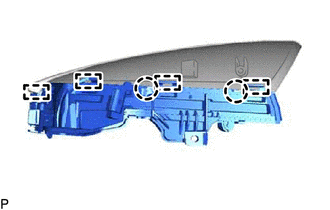

(a) Disengage the 2 claws and 4 guides to remove the side turn signal light assembly.
