Lexus ES (XZ10) Service Manual / Vehicle Interior / Exterior Panels / Trim / Rear Spoiler / Removal

REMOVAL

PROCEDURE

1. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE

Click here

2. REMOVE SWITCH BEZEL (w/ Power Trunk Lid System)

Click here

3. REMOVE LUGGAGE COMPARTMENT DOOR COVER

Click here

4. REMOVE REAR SPOILER SUB-ASSEMBLY

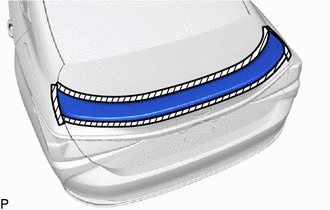

(a) Apply protective tape around the rear spoiler sub-assembly as shown in the illustration.

Protective Tape

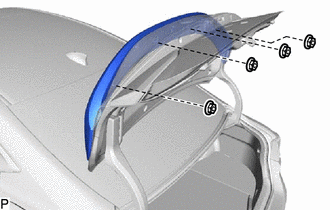

(b) Remove the 4 nuts.

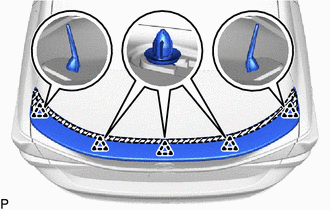

(c) Separate the double-sided tape and disengage the 5 clips to remove the rear spoiler sub-assembly.

Double-sided Tape
