REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE

Click here

2. REMOVE SWITCH BEZEL (w/ Power Trunk Lid System)

Click here

3. REMOVE LUGGAGE COMPARTMENT DOOR COVER

Click here

4. REMOVE REAR LIGHT ASSEMBLY

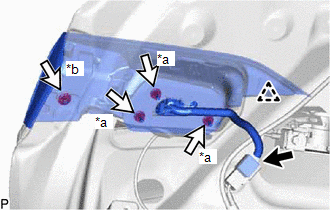

(a) Disconnect the connector.

*a

Nut

*b

Cap Nut

(b) Remove the 3 nuts and cap nut.

(c) Disengage the clip to remove the rear light assembly.
