Lexus ES: Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during absorber control ECU removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

*: When performing learning using the Techstream.

Click here

Replacement of the absorber control ECU

Registration of Vehicle Identification Information

  • Interrupts damping force control
  • DTCs are stored

Disconnect cable from negative auxiliary battery terminal

Perform steering sensor zero point calibration

Lane Control System

Pre-collision System

Parking Support Brake System*

Lighting System

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

Initialize power trunk lid system

Power Trunk Lid System

NOTICE:

  • After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Audio and Visual System)
  • After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Navigation System)

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Click here

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click here

3. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

Click here

4. REMOVE SPARE WHEEL COVER TRAY

Click here

5. REMOVE REAR FLOOR FINISH PLATE

Click here

6. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH

Click here

7. REMOVE LUGGAGE COMPARTMENT TRIM INNER COVER RH

Click here

8. REMOVE ABSORBER CONTROL ECU

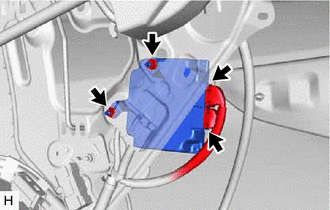

(a) Disconnect the 2 connectors from the absorber control ECU.

(b) Remove the 2 nuts and absorber control ECU.

NOTICE:

  • Avoid any impact to the absorber control ECU.
  • Do not drop the absorber control ECU. If it is dropped, replace it with a new one.
