REMOVAL

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. DRAIN ENGINE COOLANT (for Engine)

Click here

2. DISCONNECT NO. 2 RADIATOR HOSE

Click here

3. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

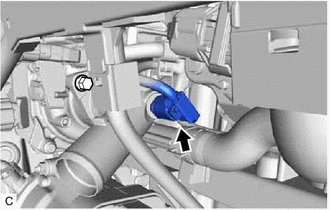

(a) Disconnect the water inlet with thermostat sub-assembly connector.

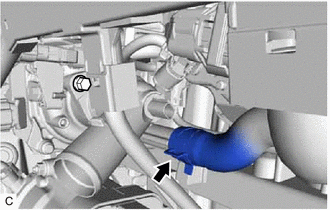

(b) Slide the clip and disconnect the No. 7 water by-pass hose from the water inlet with thermostat sub-assembly.

NOTICE:

  • Do not apply force to the water inlet with thermostat sub-assembly when disconnecting the No. 7 water by-pass hose.
  • Do not damage the water inlet with thermostat sub-assembly.

HINT:

When disconnecting the No. 7 water by-pass hose, slide the clip, rotate the hose and pull it straight off the pipe.

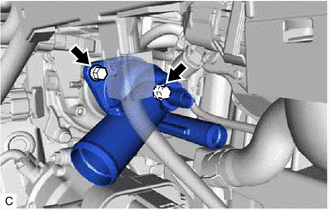

(c) Using an 8 mm socket wrench, remove the 2 bolts and water inlet with thermostat sub-assembly.

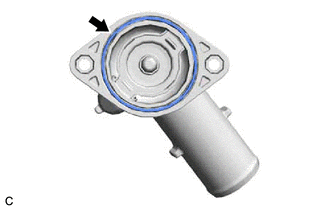

(d) Remove the gasket from the water inlet with thermostat sub-assembly.
