PARTS LOCATION

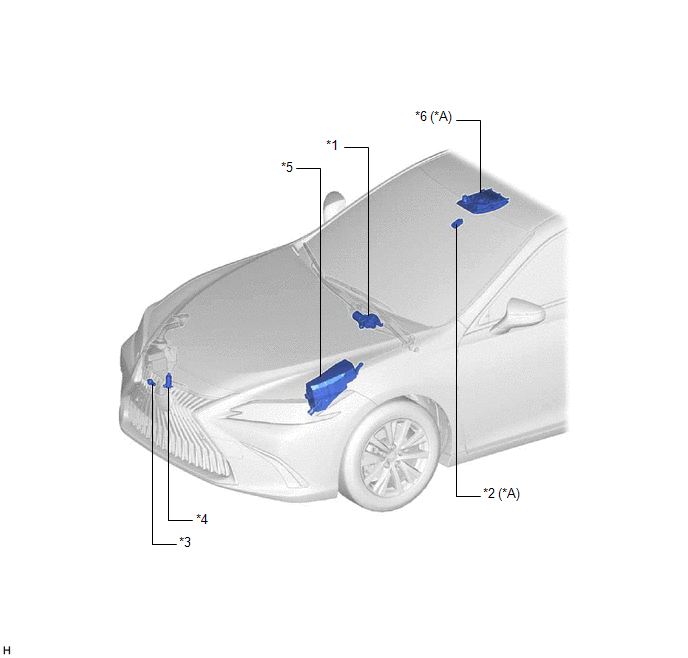

ILLUSTRATION
*A | w/ Auto Wiper System | - | - |
*1 | WINDSHIELD WIPER MOTOR ASSEMBLY | *2 | RAIN SENSOR |
*3 | LEVEL WARNING SWITCH ASSEMBLY | *4 | WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY |
*5 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - WIPER FUSE - WIPER RELAY - WASHER RELAY | *6 | MAP LIGHT SUB-ASSEMBLY |

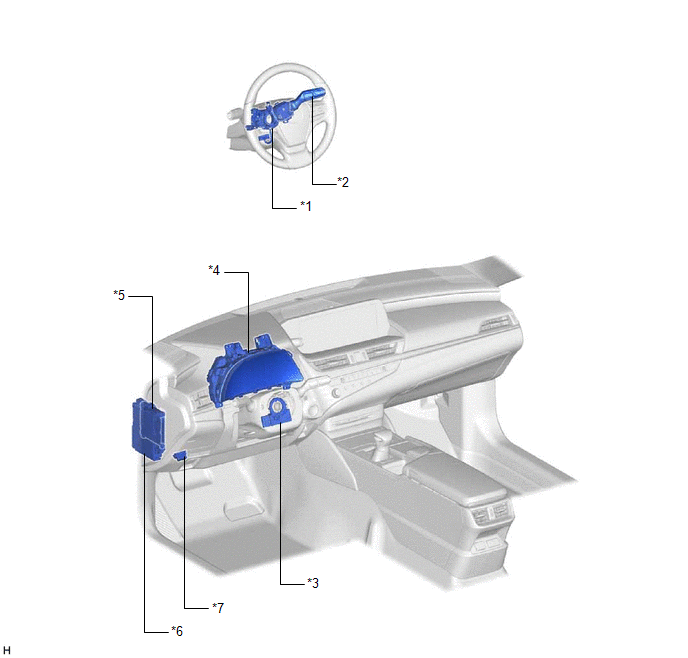

ILLUSTRATION
*1 | STEERING WHEEL SWITCH HOUSING | *2 | WINDSHIELD WIPER SWITCH ASSEMBLY |
*3 | STEERING SENSOR | *4 | COMBINATION METER ASSEMBLY |
*5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - WASHER FUSE - ECU-IG1 NO. 3 FUSE |
*7 | DLC3 | - | - |
READ NEXT:
SYSTEM DIAGRAM FRONT WIPER AND WASHER SYSTEM WASHER FLUID LEVEL WARNING SYSTEM
SYSTEM DESCRIPTION FRONT WIPER AND WASHER CONTROL FUNCTION Control/Function Description Wiper speed regulation Maintains the default speed of the wipers even when the supply voltage or resi
CAUTION / NOTICE / HINT HINT:
Use the following procedure to troubleshoot the wiper and washer system.
*: Use the Techstream.
PROCEDURE 1. VEHICLE BROUGHT TO WORKSHOP
NEXT
SEE MORE:
On-vehicle InspectionON-VEHICLE INSPECTION PROCEDURE 1. INSPECT WIPER RELAY (a) Measure the resistance according to the value(s) in the table below. Standard Resistance: Tester Connection Condition Specified Condition 3 - 5 Auxiliary battery voltage not applied between terminals 1
CAUTION / NOTICE / HINT HINT: *: Use the Techstream. PROCEDURE 1. VEHICLE BROUGHT TO WORKSHOP
NEXT 2. CUSTOMER PROBLEM ANALYSIS
NEXT 3. CONNECT TECHSTREAM TO DLC3* HINT: If the display indicates a communication malfunction, inspect the DLC
