Lexus ES: Parts Location
PARTS LOCATION

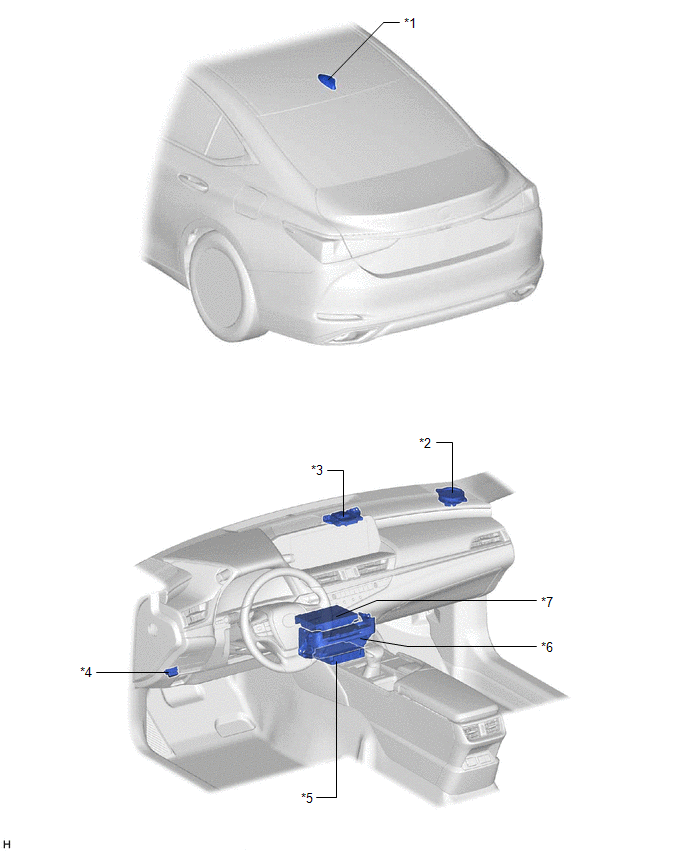

ILLUSTRATION
| *1 | ROOF ANTENNA ASSEMBLY - GPS - Telephone Main | *2 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *3 | NAVIGATION ANTENNA ASSEMBLY - Telephone Sub | *4 | DLC3 |
| *5 | DCM (TELEMATICS TRANSCEIVER) | *6 | RADIO RECEIVER ASSEMBLY |
| *7 | NAVIGATION ECU (w/ Navigation System) | - | - |
