Lexus ES: Parts Location
PARTS LOCATION

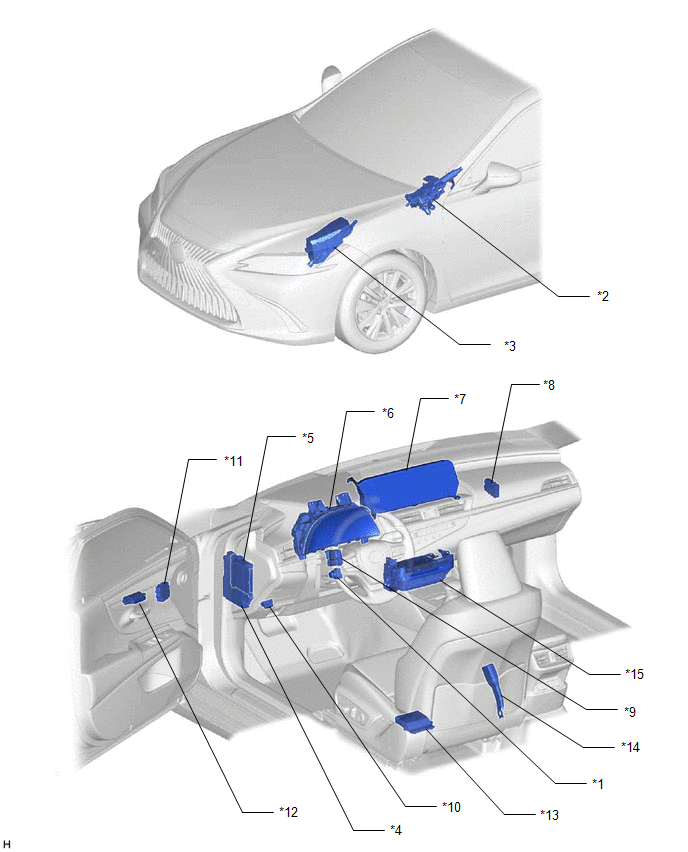

ILLUSTRATION
.png)
| *1 | TILT AND TELESCOPIC SWITCH | *2 | STEERING COLUMN ASSEMBLY - TILT MOTOR - TELESCOPIC MOTOR |
| *3 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - TI&TE FUSE | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 4 FUSE |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | COMBINATION METER ASSEMBLY |
| *7 | MULTI-DISPLAY ASSEMBLY | *8 | NETWORK GATEWAY ECU |
| *9 | MULTIPLEX TILT AND TELESCOPIC ECU | *10 | DLC3 |
| *11 | OUTER MIRROR CONTROL ECU ASSEMBLY (Driver Door) | *12 | SEAT MEMORY SWITCH |
| *13 | POSITION CONTROL ECU ASSEMBLY (Driver Seat) | *14 | FRONT SEAT INNER BELT ASSEMBLY (Driver Seat) |
| *15 | RADIO RECEIVER ASSEMBLY | - | - |
