Lexus ES: Parts Location
PARTS LOCATION

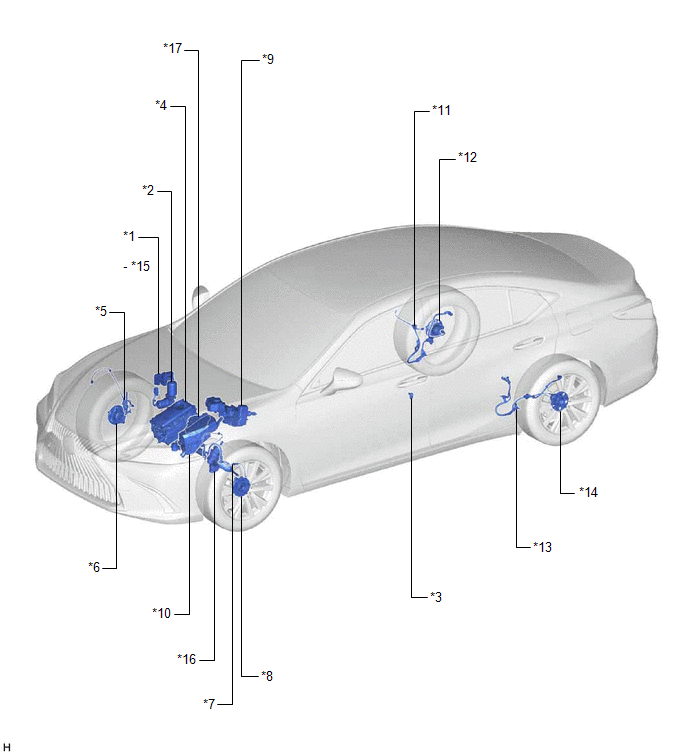

ILLUSTRATION
| *1 | BRAKE ACTUATOR ASSEMBLY | *2 | BRAKE BOOSTER PUMP ASSEMBLY |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *4 | INVERTER WITH CONVERTER ASSEMBLY |
| *5 | FRONT SPEED SENSOR RH | *6 | FRONT AXLE HUB SUB-ASSEMBLY RH - FRONT SPEED SENSOR ROTOR RH |
| *7 | FRONT SPEED SENSOR LH | *8 | FRONT AXLE HUB SUB-ASSEMBLY LH - FRONT SPEED SENSOR ROTOR LH |
| *9 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - BRAKE ACTUATOR - SKID CONTROL ECU - BRAKE FLUID LEVEL WARNING SWITCH | *10 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ABS MTR NO. 1 FUSE - ABS MTR NO. 2 FUSE - ABS MTR NO. 3 FUSE - ABS-MAIN NO. 1 FUSE - ABS NO. 2 FUSE - ABS NO. 3 FUSE |
| *11 | NO. 1 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE RH | *12 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR ROTOR RH - REAR SPEED SENSOR RH |
| *13 | NO. 2 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE LH | *14 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR ROTOR LH - REAR SPEED SENSOR LH |
| *15 | PARKING BRAKE ECU | *16 | RACK AND PINION POWER STEERING GEAR ASSEMBLY - POWER STEERING ECU |
| *17 | ECM | - | - |

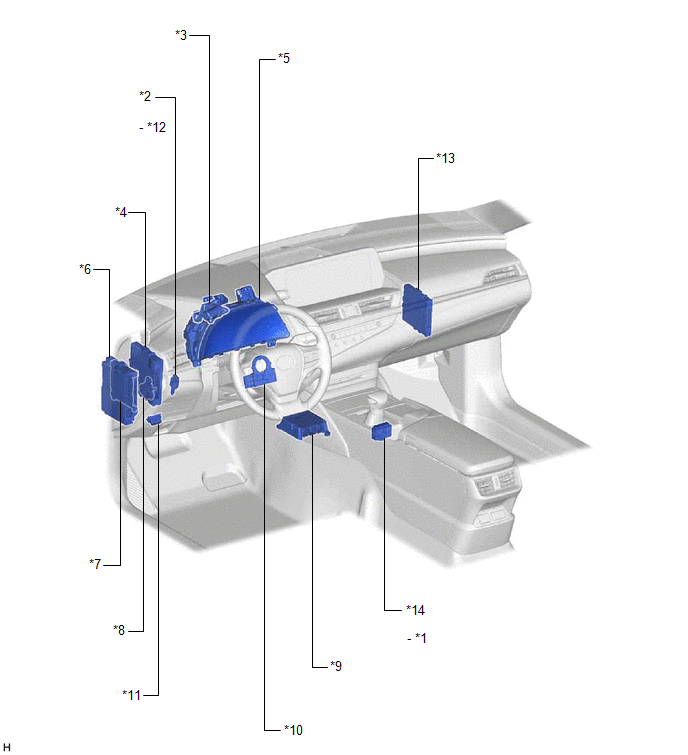

ILLUSTRATION
| *1 | BRAKE HOLD SWITCH | *2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | VSC OFF SWITCH | *4 | HYBRID VEHICLE CONTROL ECU |
| *5 | COMBINATION METER ASSEMBLY - ABS WARNING LIGHT - BRAKE WARNING LIGHT / RED (MALFUNCTION) - BRAKE WARNING LIGHT / YELLOW (MINOR MALFUNCTION) - MULTI-INFORMATION DISPLAY (TRACTION CONTROL TURNED OFF) - VSC OFF INDICATOR LIGHT - SLIP INDICATOR LIGHT - BRAKE HOLD STANDBY INDICATOR LIGHT - BRAKE HOLD OPERATED INDICATOR LIGHT - METER BUZZER | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 2 FUSE - ECU-IG2 NO. 3 FUSE - ECU-DCC NO. 1 FUSE - A/BAG-IG2 FUSE - STOP FUSE |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | BRAKE PEDAL STROKE SENSOR ASSEMBLY |
| *9 | AIRBAG ECU ASSEMBLY - YAW RATE AND ACCELERATION SENSOR | *10 | STEERING ANGLE SENSOR |
| *11 | DLC3 | *12 | STOP LIGHT CONTROL RELAY |
| *13 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *14 | NO. 3 COMBINATION SWITCH ASSEMBLY |
