Lexus ES: Parts Location
PARTS LOCATION
ILLUSTRATION

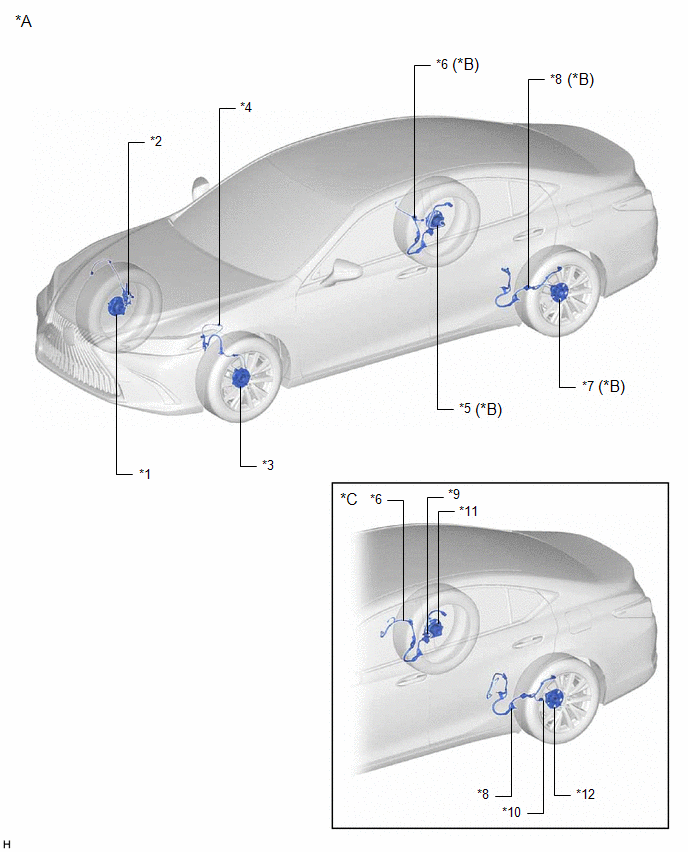

| *A | w/o AVS | *B | for 2WD |
| *C | for AWD | - | - |
| *1 | FRONT AXLE HUB SUB-ASSEMBLY RH - FRONT SPEED SENSOR ROTOR RH | *2 | FRONT SPEED SENSOR RH |
| *3 | FRONT AXLE HUB SUB-ASSEMBLY LH - FRONT SPEED SENSOR ROTOR LH | *4 | FRONT SPEED SENSOR LH |
| *5 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR RH - REAR SPEED SENSOR ROTOR RH | *6 | NO. 1 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE RH |
| *7 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR LH - REAR SPEED SENSOR ROTOR LH | *8 | NO. 2 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE LH |
| *9 | REAR SPEED SENSOR RH | *10 | REAR SPEED SENSOR LH |
| *11 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR ROTOR RH | *12 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR ROTOR LH |
ILLUSTRATION
.png)

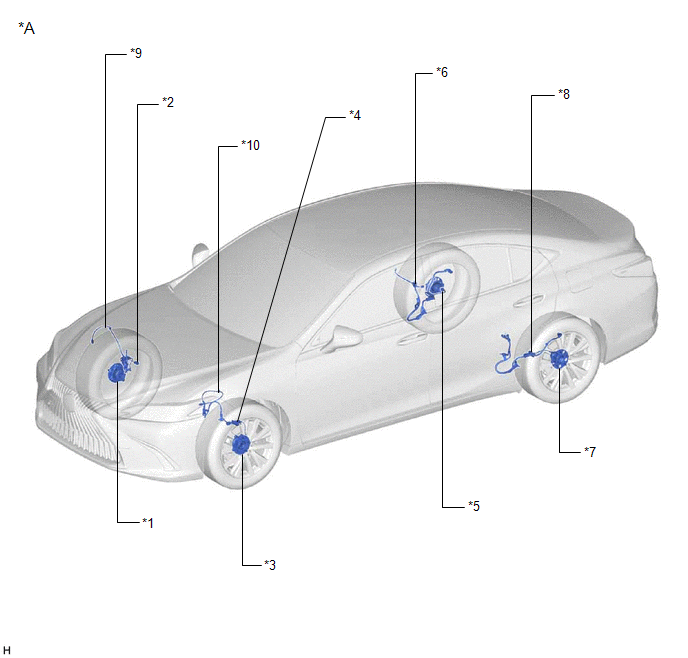

| *A | w/ AVS | - | - |
| *1 | FRONT AXLE HUB SUB-ASSEMBLY RH - FRONT SPEED SENSOR ROTOR RH | *2 | FRONT SPEED SENSOR RH |
| *3 | FRONT AXLE HUB SUB-ASSEMBLY LH - FRONT SPEED SENSOR ROTOR LH | *4 | FRONT SPEED SENSOR LH |
| *5 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR RH - REAR SPEED SENSOR ROTOR RH | *6 | NO. 1 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE RH |
| *7 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR LH - REAR SPEED SENSOR ROTOR LH | *8 | NO. 2 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE LH |
| *9 | SKID CONTROL SENSOR WIRE WITH SUSPENSION CONTROL RH | *10 | SKID CONTROL SENSOR WIRE WITH SUSPENSION CONTROL LH |
ILLUSTRATION
.png)

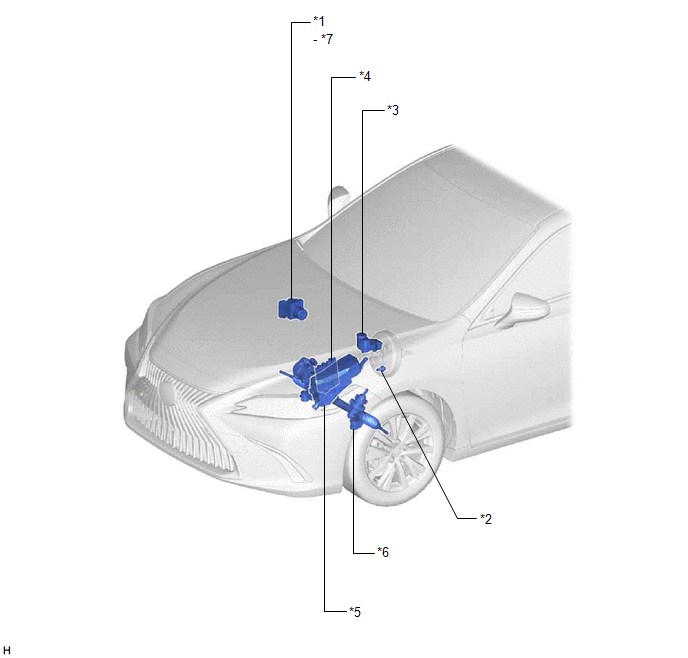

| *1 | BRAKE ACTUATOR ASSEMBLY | *2 | VACUUM WARNING SWITCH ASSEMBLY |
| *3 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH | *4 | ECM |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ABS NO. 1 FUSE - ABS NO. 2 FUSE | *6 | RACK AND PINION POWER STEERING GEAR ASSEMBLY - POWER STEERING ECU |
| *7 | SKID CONTROL ECU | - | - |
ILLUSTRATION
.png)

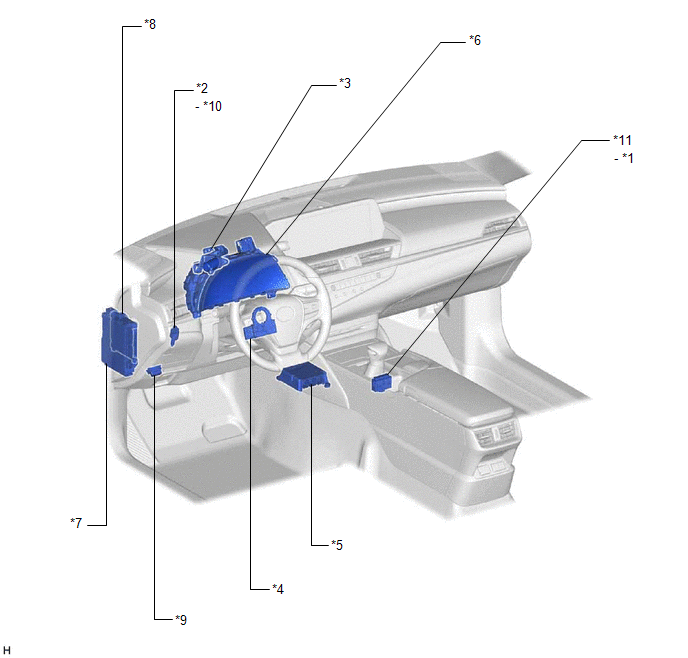

| *1 | BRAKE HOLD SWITCH | *2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | VSC OFF SWITCH | *4 | STEERING ANGLE SENSOR |
| *5 | AIRBAG ECU ASSEMBLY - YAW RATE AND ACCELERATION SENSOR | *6 | COMBINATION METER ASSEMBLY - ABS WARNING LIGHT - BRAKE WARNING LIGHT / RED (MALFUNCTION) - MULTI-INFORMATION DISPLAY (TRACTION CONTROL TURNED OFF) - VSC OFF INDICATOR LIGHT - SLIP INDICATOR LIGHT - BRAKE HOLD STANDBY INDICATOR LIGHT - BRAKE HOLD OPERATED INDICATOR LIGHT |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 2 FUSE - ECU-DCC NO. 1 FUSE - A/BAG-IG2 FUSE - STOP FUSE | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | DLC3 | *10 | STOP LIGHT CONTROL RELAY |
| *11 | NO. 3 COMBINATION SWITCH ASSEMBLY | - | - |
