Lexus ES: Moon roof

Use the overhead switches to open and close the moon roof and tilt it up and down.

Operating the moon roof

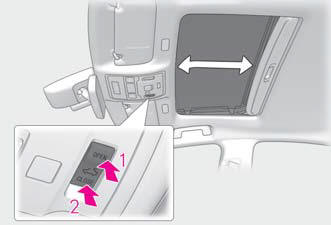

■ Opening and closing

Lexus ES. Opening and closing the windows and moon roof

  1. Opens the moon roof*
    The moon roof stops slightly before the fully open position to reduce wind noise.

    Press the switch again to fully open the moon roof.

  2. Closes the moon roof*

*: Lightly press either way of the moon roof switch to stop the moon roof partway.

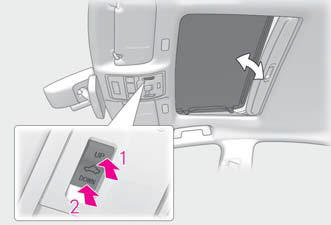

■ Tilting up and down

Lexus ES. Opening and closing the windows and moon roof

  1. Tilts the moon roof up*
  2. Tilts the moon roof down*

*: Lightly press either way of the moon roof switch to stop the moon roof partway.

■The moon roof can be operated when The power switch is in ON mode.

■Operating the moon roof after turning the hybrid system off The moon roof can be operated for approximately 45 seconds after the power switch is turned to ACCESSORY mode or turned off. It cannot, however, be operated once either front door is opened.

■Jam protection function If an object is detected between the moon roof and the frame while the moon roof is closing or tilting down, travel is stopped and the moon roof opens slightly.

■Sunshade The sunshade can be opened and closed manually. However, the sunshade will open automatically when the moon roof is opened.

■Door lock linked moon roof operation

*: These settings must be customized at your Lexus dealer.

■When the moon roof does not close normally

Perform the following procedure:

1. Stop the vehicle.

2. Press and hold the "CLOSE" switch.* The moon roof will close, reopen and pause for approximately 10 seconds. Then it will close again and stop at the completely closed position.

3. Check to make sure that the moon roof is completely closed and then release the switch.

*: If the switch is released at the incorrect time, the procedure will have to be performed again from the beginning.

If the moon roof does not fully close even after performing the above procedure correctly, have the vehicle inspected by your Lexus dealer.

■If the moon roof does not move normally If the moon roof does not open or close normally or the automatic opening function does not operate, perform the following initialization procedure.

1. Stop the vehicle.

2. Press and hold the "DOWN" switch.* The moon roof will stop at the tilt-up position.

After that, it will open, close, tilt up, tilt down, and stop at the fully closed position.

3. Confirm that the moon roof has completely stopped and release the switch.

*: If you release the switch while the moon roof is moving, perform the procedure again from the beginning.

If, after performing the above procedures correctly, the moon roof still does not open or close normally or the automatic opening function does not operate, have the vehicle inspected by your Lexus dealer.

■Moon roof open warning buzzer A buzzer sounds and a message is shown on the multi-information display when the power switch is turned off and the driver's door is opened with the moon roof open.

■Customization Settings (e.g. linked door lock operation) can be changed.

WARNING

Observe the following precautions.

Failure to do so may cause death or serious injury.

■Opening the moon roof

WARNING

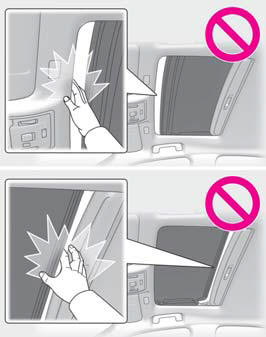

■Opening and closing the moon roof

Lexus ES. Opening and closing the windows and moon roof

■Jam protection function
