Lexus ES: Lost Communication with Front Shade Module (B2346)

DESCRIPTION

This DTC is stored when LIN communication between the sliding roof ECU (sliding roof drive gear assembly) and roof sunshade ECU (sliding roof drive gear assembly) stops for 10 seconds or more.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B2346

Lost Communication with Front Shade Module

No communication between the sliding roof ECU (sliding roof drive gear assembly) and roof sunshade ECU (sliding roof drive gear assembly) for 10 seconds or more.

  • Sliding roof ECU (Sliding roof drive gear assembly)
  • Roof sunshade ECU (Sliding roof drive gear assembly)
  • Wire harness or connector

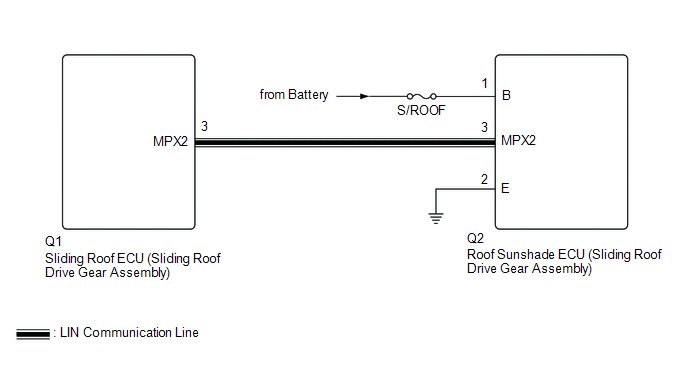

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • Inspect the fuses for circuits related to this system before performing the following inspection procedure.
  • When the sliding roof ECU (sliding roof drive gear assembly) is removed and reinstalled or replaced, the sliding roof ECU (sliding roof drive gear assembly) must be initialized.

    Click here

  • When the roof sunshade ECU (sliding roof drive gear assembly) is removed and reinstalled or replaced, the roof sunshade ECU (sliding roof drive gear assembly) must be initialized.

    Click here

PROCEDURE

1.

CHECK FOR DTC

(a) Clear the DTCs.

Body Electrical > Sliding Roof > Clear DTCs

(b) Check for DTCs.

Body Electrical > Sliding Roof > Trouble Codes

OK:

DTC B2346 is not output.

NG

USE SIMULATION METHOD TO CHECK

OK

2.

CHECK HARNESS AND CONNECTOR (SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY) - ROOF SUNSHADE ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY))

(a) Disconnect the Q1 sliding roof ECU (sliding roof drive gear assembly) connector.

(b) Disconnect the Q2 roof sunshade ECU (sliding roof drive gear assembly) connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Q1-3 (MPX2) - Q2-3 (MPX2)

Always

Below 1 Ω

Q1-3 (MPX2) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

3.

CHECK HARNESS AND CONNECTOR (FRONT ROOF SUNSHADE ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY) - BATTERY AND BODY GROUND)

(a) Disconnect the Q2 roof sunshade ECU (sliding roof drive gear assembly) connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Q2-2 (E) - Body ground

Always

Below 1 Ω

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

Q2-1 (B) - Body ground

Always

11 to 14 V

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

4.

CHECK ROOF SUNSHADE ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY)

(a) Temporarily replace the roof sunshade ECU (sliding roof drive gear assembly) with a new or normally functioning one.

Click here

NEXT

5.

CHECK FOR DTC

(a) Clear the DTCs.

Body Electrical > Sliding Roof > Clear DTCs

(b) Check for DTCs.

Body Electrical > Sliding Roof > Trouble Codes

OK:

DTC B2346 is not output.

OK

END (ROOF SUNSHADE ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY) IS DEFECTIVE)

NG

REPLACE SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY)
