Lexus ES: Installation

INSTALLATION

PROCEDURE

1. INSTALL NAVIGATION ECU

2. INSTALL NO. 1 RADIO RECEIVER BRACKET

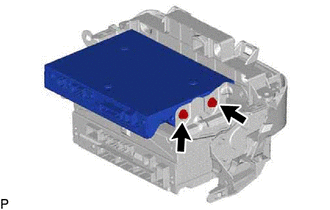

(a) Install the No. 1 radio receiver bracket with the 2 screws.

3. INSTALL NAVIGATION ECU WITH BRACKET

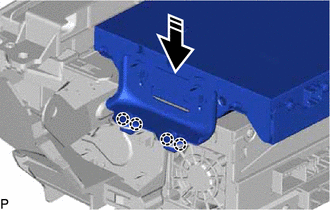

(a) Engage the 4 claws to temporarily install the navigation ECU with bracket as shown in the illustration.

Install in this Direction

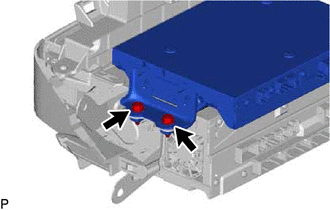

(b) Install the 2 screws.

(c) Install the navigation ECU with bracket with the 2 screws.

4. INSTALL NO. 1 NAVIGATION WIRE

(a) Connect the 2 connectors to install the No. 1 navigation wire.

5. INSTALL RADIO RECEIVER ASSEMBLY WITH SWITCH

Click here

6. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY

Click here

7. INSTALL LOWER INSTRUMENT PANEL LH

Click here

8. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

9. INSTALL INSTRUMENT SIDE PANEL RH

Click here

10. INSTALL FRONT DOOR OPENING TRIM COVER RH

HINT:

Use the same procedure as for the LH side.

Click here

11. INSTALL COWL SIDE TRIM BOARD RH

HINT:

Use the same procedure as for the LH side.

Click here

12. INSTALL FRONT DOOR SCUFF PLATE RH

HINT:

Use the same procedure as for the LH side.

Click here

13. INSTALL LOWER INSTRUMENT PANEL

Click here

14. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

Click here

15. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

Click here

16. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

for UA80E:

Click here

for P710:

Click here

UB80F:

Click here

17. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click here

18. INSTALL INSTRUMENT PANEL FINISH PANEL END RH

Click here

19. INSTALL INSTRUMENT PANEL FINISH PANEL END LH

Click here
