Lexus ES (XZ10) Service Manual / Vehicle Interior / Mirror (ext) / Outer Mirror Switch / Installation
INSTALLATION
PROCEDURE
1. INSTALL OUTER MIRROR SWITCH ASSEMBLY

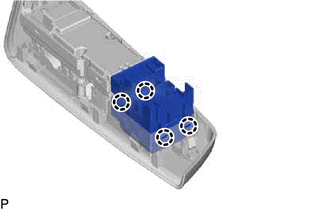

| (a) Engage the 4 claws to install the outer mirror switch assembly. |
|
2. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL
Click here .gif)
