Lexus ES: Installation

INSTALLATION

PROCEDURE

1. INSTALL REAR BUMPER ASSEMBLY

(a) w/ Wire Harness:

(1) Connect the connector.

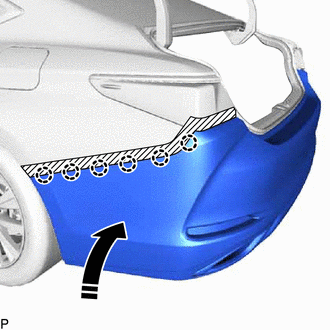

(b) Engage the 6 claws as shown in the illustration.

Install in this Direction

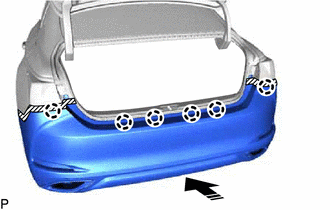

(c) Engage the 6 claws as shown in the illustration.

Install in this Direction

HINT:

Use the same procedure for the RH side and LH side.

(d) Install the 12 clips.

(e) Install the screw.

HINT:

Use the same procedure for the RH side and LH side.

(f) Engage the 2 claws.

HINT:

Use the same procedure for the RH side and LH side.

(g) Install the clip.

HINT:

Use the same procedure for the RH side and LH side.

(h) Install the rear bumper assembly with the 2 screws.

2. INSTALL REAR COMBINATION LIGHT COVER LH

Click here

3. INSTALL REAR COMBINATION LIGHT COVER RH

HINT:

Use the same procedure as for the LH side.

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Hands Free Power Trunk Lid)

for 2GR-FKS:

Click here

for A25A-FKS:

Click here

5. INITIALIZE KICK DOOR CONTROL SENSOR (w/ Hands Free Power Trunk Lid)

Click here

6. INSPECT KICK DOOR CONTROL SENSOR (w/ Hands Free Power Trunk Lid)

Click here

7. PERFORM CALIBRATION (w/ Parking Support Brake System)

Click here
