Lexus ES: Installation

INSTALLATION

CAUTION / NOTICE / HINT

NOTICE:

  • Do not remove/install the spiral cable with sensor sub-assembly with the auxiliary battery connected and the engine switch (for Gasoline Model) or power switch (for HV Model) on (IG).
  • Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the auxiliary battery connected and the engine switch (for Gasoline Model) or power switch (for HV Model) on (IG).
  • Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.

PROCEDURE

1. INSTALL NO. 1 SWITCH WIRE

for UA80E: Click here

for P710: Click here

for UB80F: Click here

2. INSTALL SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

for UA80E: Click here

for P710: Click here

for UB80F: Click here

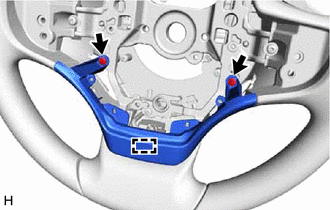

3. INSTALL NO. 1 STEERING WHEEL ORNAMENT

(a) Engage the pin to install the No. 1 steering wheel ornament.

(b) Install the 2 screws.

4. INSTALL STEERING PAD SWITCH ASSEMBLY

Click here

5. INSTALL HEATED STEERING WHEEL CONTROLLER (STEERING VIBRATION ECU)

Click here

6. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

7. INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

Click here

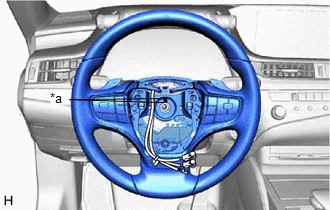

8. INSTALL STEERING WHEEL ASSEMBLY

(a) Align the matchmarks on the steering wheel assembly and steering main shaft to install the steering wheel assembly.

*a

Matchmark

(b) Using a 10 mm hexagon socket wrench, install the steering wheel assembly set bolt.

Torque:

62 N·m {632 kgf·cm, 46 ft·lbf}

(c) Connect each connector to the spiral cable with sensor sub-assembly and steering wheel assembly.

9. CHECK STEERING WHEEL CENTER POINT

10. INSTALL HORN BUTTON ASSEMBLY

Click here
