1. INSTALL FUEL MAIN VALVE ASSEMBLY

(a) for Type A:

(1) Apply gasoline to 2 new O-rings. Then install the O-rings to the fuel main valve assembly.

(2) Install the fuel main valve assembly to the fuel suction tube with pump and gauge assembly.

NOTICE:

Make sure that the O-rings are not cut or pinched during installation.

(3) Install the clip to the fuel suction tube with pump and gauge assembly.

(b) for Type B:

(1) Apply gasoline to a new O-ring. Then install the O-ring to the fuel main valve assembly.

NOTICE:

Make sure that there is no clearance between the fuel main valve assembly and mesh.

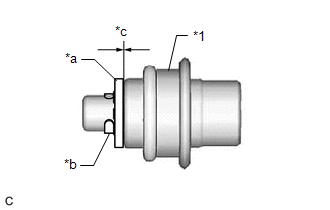

*1

Fuel Main Valve Assembly

*a

Mesh

*b

Mini-clip

*c

No Clearance

(2) Install the fuel main valve assembly to the fuel suction tube with pump and gauge assembly.

NOTICE:

Make sure that the O-ring is not cut or pinched during installation.

(3) Engage the 2 claws to install the fuel pressure regulator holder to the fuel suction tube with pump and gauge assembly.
