Lexus ES (XZ10) Service Manual / Engine & Hybrid System / A25a-fxs (cooling) / Flow Shutting Valve / Inspection

INSPECTION

PROCEDURE

1. INSPECT FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 2

20°C (68°F)

22 to 28 Ω

If the result is not as specified, replace the flow shutting valve (water by-pass hose assembly).

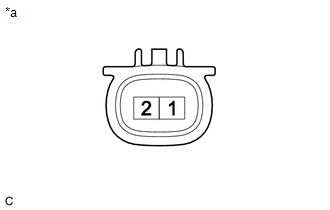

*a

Component without harness connected

(Flow Shutting Valve (Water By-pass Hose Assembly))
