Lexus ES: Inspection

INSPECTION

PROCEDURE

1. INSPECT DIFFERENTIAL CASE ASSEMBLY

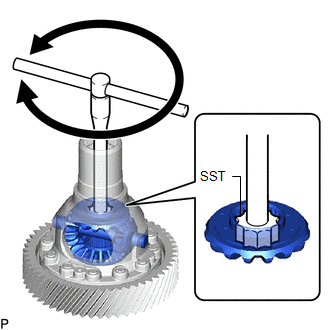

(a) Using SST, rotate the front differential side gear as shown in the illustration.

SST: 09528-52010

09528-05030

Standard:

The front differential side gear does not lock when rotated in either direction.

If the result is not as specified, replace the differential case assembly.
