Lexus ES: Disassembly
DISASSEMBLY
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE HEADLIGHT ECU SUB-ASSEMBLY
Click here .gif)
2. REMOVE HEADLIGHT GASKET
Click here
3. REMOVE HEADLIGHT RIM (for TMC Made)
Click here
4. REMOVE NO. 2 HEADLIGHT FITTING RIM (for TMC Made)
Click here

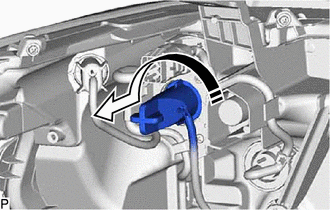

5. REMOVE FRONT TURN SIGNAL LIGHT BULB
(a) Turn the headlight cord with the front turn signal light bulb as shown in the illustration to disconnect them as a unit.
.png) | Disconnect in this Direction |
(b) Remove the front turn signal light bulb from the headlight cord.

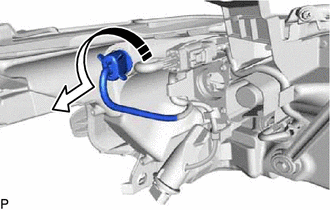

6. REMOVE FRONT SIDE MARKER LIGHT BULB
(a) Turn the headlight cord with the front side marker light bulb as shown in the illustration to disconnect them as a unit.
| | Disconnect in this Direction |
(b) Remove the front side marker light bulb from the headlight cord.

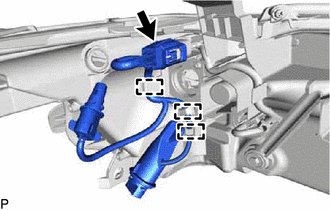

7. REMOVE HEADLIGHT CORD (for TMC Made)
| (a) Disconnect the connector. |
|
(b) Disengage the 3 clamps to remove the headlight cord.
8. REMOVE HEADLIGHT UNIT ASSEMBLY (for TMC Made)
9. REMOVE HEADLIGHT BRACKET (for TMC Made)

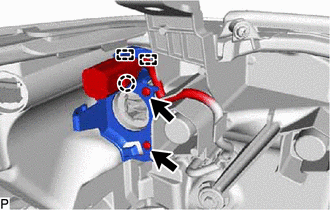

| (a) Disengage the claw to disconnect the No. 2 headlight cord. |
|
(b) Remove the 2 screws.
(c) Disengage the 2 guides to remove the headlight bracket.
10. REMOVE HEADLIGHT SEAL (for TMC Made)
Click here
