1. REMOVE ROOF WIND DEFLECTOR PANEL SUB-ASSEMBLY

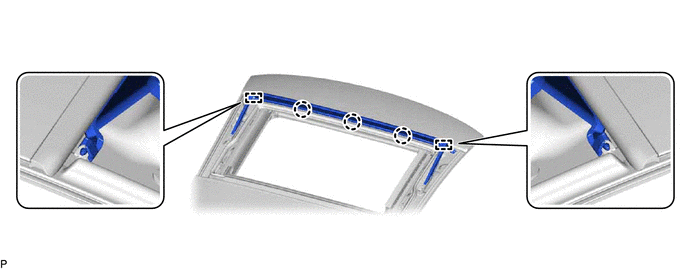

(a) Disengage the 3 claws and 2 pins.

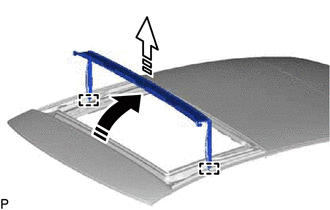

(b) Move the roof wind deflector panel sub-assembly in the direction indicated by the arrow (1) shown in the illustration.
.png) | Remove in this Direction (1) |
.png) | Remove in this Direction (2) |
(c) Move the roof wind deflector panel sub-assembly in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove the roof wind deflector panel sub-assembly.

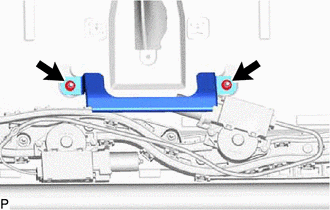

2. REMOVE ROOM LIGHT BRACKET

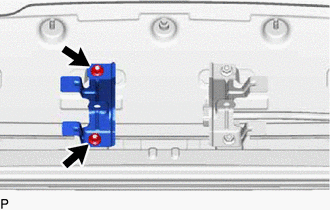

| (a) Remove the 2 nuts and room light bracket. |
|

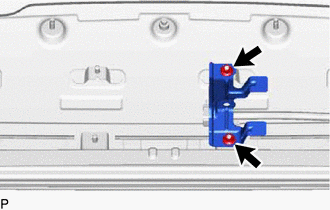

3. REMOVE NO. 2 ROOM LIGHT BRACKET
| (a) Remove the 2 nuts and No. 2 room light bracket. |
|
4. REMOVE SLIDING ROOF DRIVE GEAR ASSEMBLY (for Roof Sunshade)
| (a) Remove the 2 nuts and room light bracket. |
|
(b) Disconnect the connector.

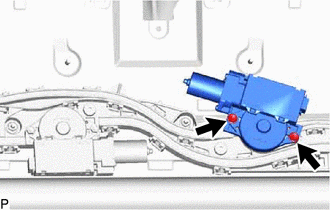

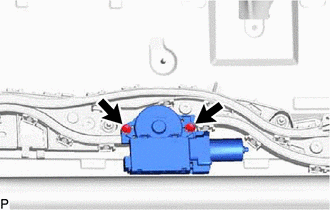

| (c) Remove the 2 bolts and sliding roof drive gear assembly. |
|
5. REMOVE SLIDING ROOF DRIVE GEAR ASSEMBLY (for Sliding Roof Glass)
(a) Disconnect the connector.
| (b) Remove the 2 bolts and sliding roof drive gear assembly. |
|
6. REMOVE SLIDE ROOF RAIL SUB-ASSEMBLY

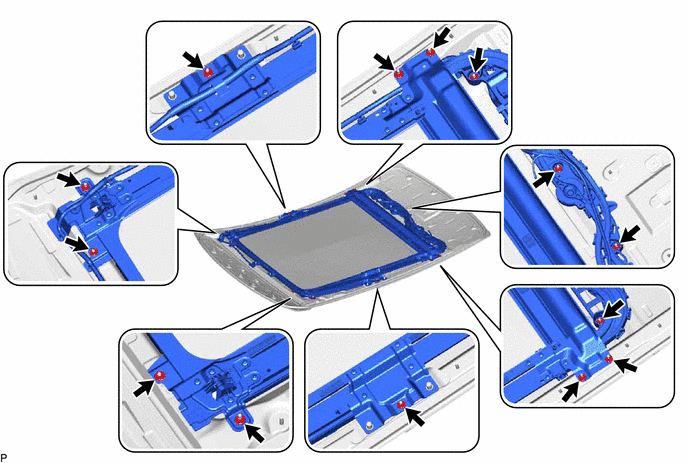

(a) Remove the 14 nuts and slide roof rail sub-assembly from the sliding roof housing panel.
7. REMOVE REAR SLIDING ROOF GARNISH
(a) Using a heat light, heat the rear sliding roof garnish.
Heating Temperature| Item | Temperature |
|---|---|
| Rear Sliding Roof Garnish | 20 to 30°C (68 to 86°F) |

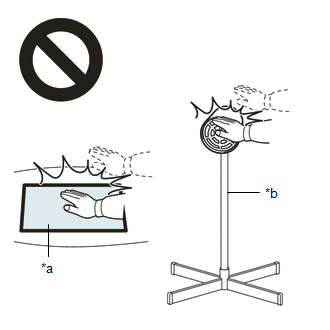

CAUTION:
- Do not touch the heat light and heated parts, touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
.png)
| *a | Heated Part |
| *b | Heat Light |
NOTICE:
Do not heat the rear sliding roof garnish excessively.
(b) Disengage the 2 guides to remove the rear sliding roof garnish.

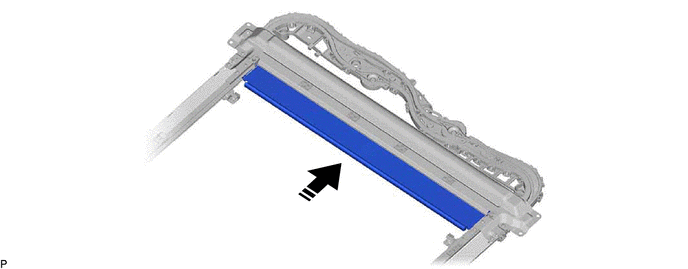

.png) | Double-sided Tape | - | - |
8. REMOVE NO. 2 ROOF WIRE

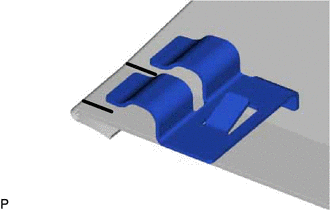

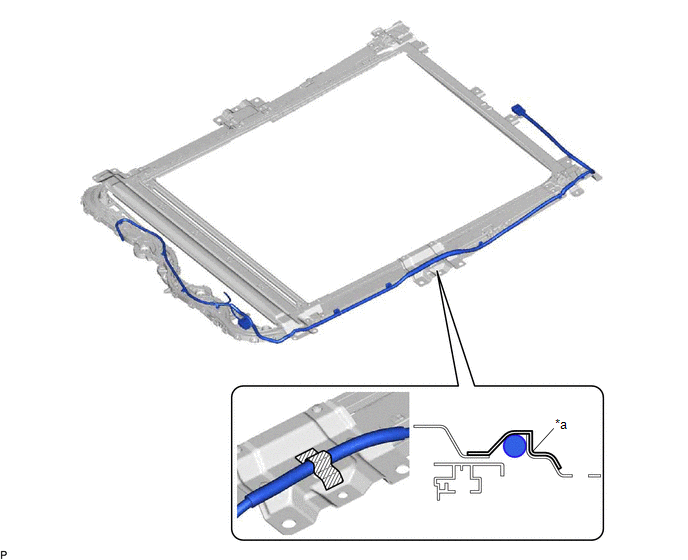

(a) Cut the tape at the position shown in the illustration.
| *a | Cut | - | - |
| | Tape | - | - |
(b) When reusing the No. 2 roof wire:
(1) Wrap the tape around the No. 2 roof wire.
HINT:
Make sure to remove the remaining tape from the bracket.

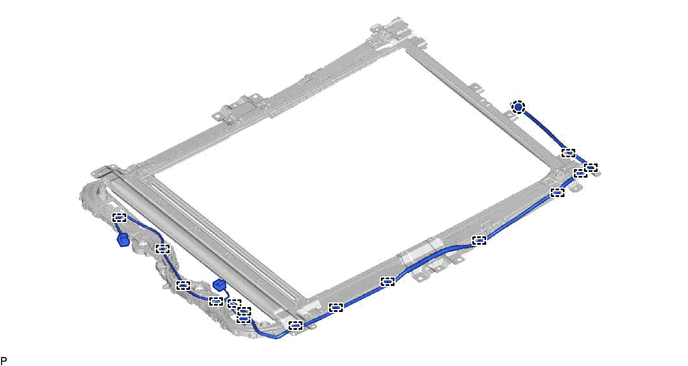

(c) Disengage the claw and 15 clamps to remove the No. 2 roof wire.

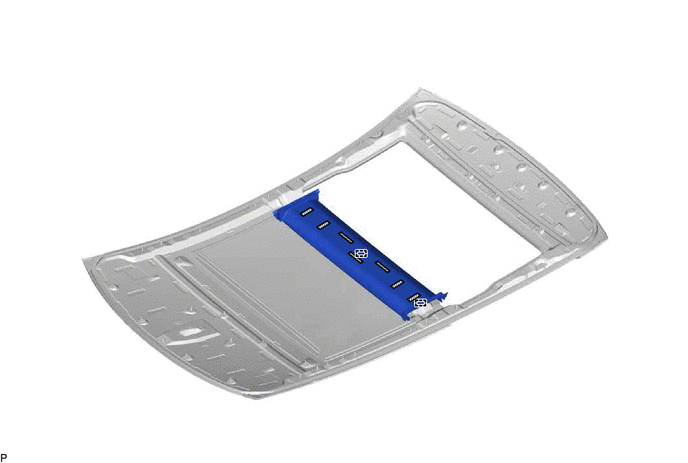

9. REMOVE SUNSHADE TRIM SUB-ASSEMBLY

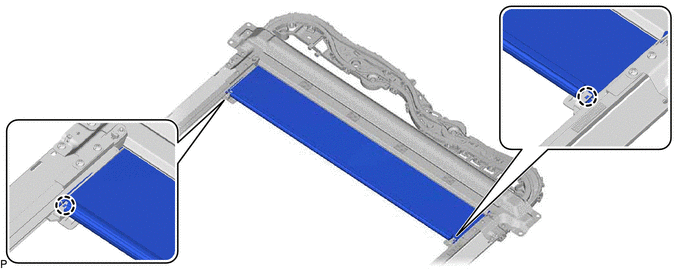

(a) Move the sunshade trim sub-assembly as shown in the illustration to disengage the 2 claws.
| | Remove in this Direction | - | - |
(b) Disengage the 2 claws.

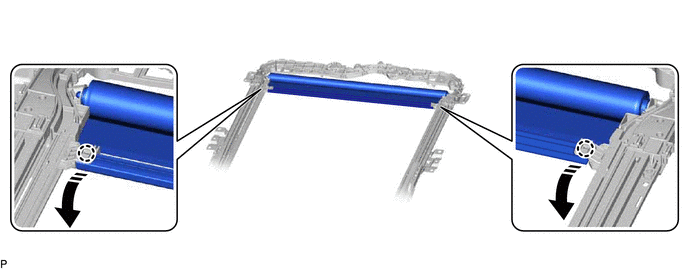

(c) Slide the sunshade trim sub-assembly as shown in the illustration.
| | Remove in this Direction | - | - |
| (d) Remove the sliding roof sunshade plate. HINT: Use the same procedure for the RH side and LH side. |
|

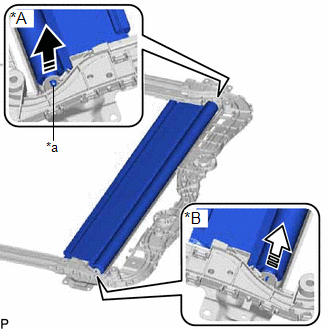

(e) Remove the sunshade trim sub-assembly as shown in the illustration.
| *A | RH Side |
| *B | LH side |
| *a | Retractor Cap |
| | Remove in this Direction (1) |
| | Remove in this Direction (2) |
NOTICE:
To prevent the sunshade trim sub-assembly from being damaged, fully push in the RH side retractor cap before lifting the sunshade trim sub-assembly to separate it from the slide roof rail sub-assembly.
HINT:
Separate the RH side first.
