Lexus ES: Cornering Light Circuit

DESCRIPTION

The headlight ECU sub-assembly controls the cornering lights.

WIRING DIAGRAM

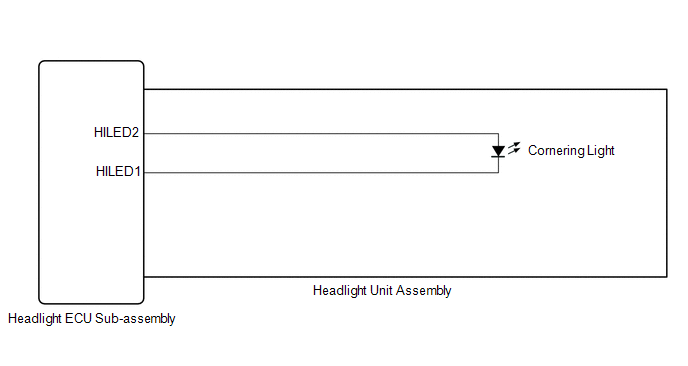

except Bulb Type Turn Signal Light (for TMMK Made)

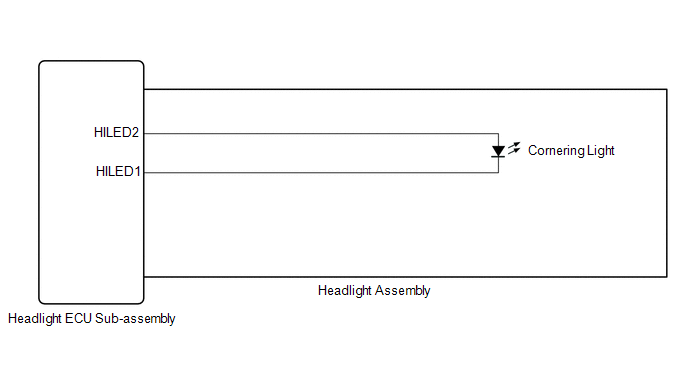

for Bulb Type Turn Signal Light (for TMMK Made)

CAUTION / NOTICE / HINT

NOTICE:

  • If the headlight ECU sub-assembly LH has been replaced, it is necessary to synchronize the vehicle information and initialize the headlight ECU sub-assembly LH.*1

    Click here

  • If the headlight ECU sub-assembly LH has been replaced, it is necessary to synchronize the vehicle information the headlight ECU sub-assembly LH.*2

    Click here

  • If the headlight assembly LH has been replaced, it is necessary to synchronize the vehicle information the headlight ECU sub-assembly LH.*3

    Click here

  • When replacing the headlight ECU sub-assembly LH, always replace it with a new one. If a headlight ECU sub-assembly LH which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.
    • *1: for LED Type Turn Signal Light
    • *2: for Bulb Type Turn Signal Light
    • *3: for Bulb Type Turn Signal Light (for TMMK Made)

PROCEDURE

1.

CONFIRM MODEL

(a) Choose the model to be inspected.

Result

Proceed to

for LED Type Turn Signal Light

A

for Bulb Type Turn Signal Light

B

B

GO TO STEP 5

A

2.

CHECK LIGHTS

(a) Check the illumination of each cornering lights.

Result

Proceed to

LH side cornering light does not illuminate

A

RH side cornering light does not illuminate

B

B

GO TO STEP 4

A

3.

PERFORM ACTIVE TEST USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / AFS / Active Test.

(e) Perform the Active Test according to the display on the Techstream.

Body Electrical > AFS > Active Test

Tester Display

Measurement Item

Control Range

Diagnostic Note

Cornering Light/Front Side Illuminate Light

Cornering light/front side illuminate light

OFF or ON

-

Body Electrical > AFS > Active Test

Tester Display

Cornering Light/Front Side Illuminate Light

OK:

Cornering light turn on.

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

NG

GO TO STEP 7

4.

PERFORM ACTIVE TEST USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / AFS (Sub) / Active Test.

(e) Perform the Active Test according to the display on the Techstream.

Body Electrical > AFS (Sub) > Active Test

Tester Display

Measurement Item

Control Range

Diagnostic Note

Cornering Light/Front Side Illuminate Light

Cornering light/front side illuminate light

OFF or ON

-

Body Electrical > AFS (Sub) > Active Test

Tester Display

Cornering Light/Front Side Illuminate Light

OK:

Cornering light turn on.

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

NG

GO TO STEP 12

5.

CHECK LIGHTS

(a) Check the illumination of each cornering lights.

Result

Proceed to

LH side cornering light does not illuminate

A

RH side cornering light does not illuminate

B

B

GO TO STEP 11

A

6.

PERFORM ACTIVE TEST USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / HL AutoLeveling / Active Test.

(e) Perform the Active Test according to the display on the Techstream.

Body Electrical > HL AutoLeveling > Active Test

Tester Display

Measurement Item

Control Range

Diagnostic Note

Cornering Light/Front Side Illuminate Light

Cornering light/front side illuminate light

OFF or ON

-

Body Electrical > HL AutoLeveling > Active Test

Tester Display

Cornering Light/Front Side Illuminate Light

OK:

Cornering light turn on.

Result

Proceed to

OK

A

NG (for TMC Made)

B

NG (for TMMK Made)

C

A

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

C

GO TO STEP 9

B

7.

CHECK HEADLIGHT UNIT ASSEMBLY LH

(a) Interchange the headlight unit assembly LH with RH and connect the connectors.

for LED Type Turn Signal Light: Click here

for Bulb Type Turn Signal Light: Click here

NEXT

8.

CHECK OPERATION (CORNERING LIGHT)

(a) Check that the cornering light operates normally.

Click here

OK:

Cornering light operates normally.

OK

REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH

NG

REPLACE HEADLIGHT UNIT ASSEMBLY LH

9.

CHECK HEADLIGHT ASSEMBLY LH

(a) Remove each headlight ECU sub-assembly, interchange the headlight assembly LH with RH and connect the connectors.

Click here

NEXT

10.

CHECK OPERATION (CORNERING LIGHT)

(a) Check that the cornering light operates normally.

Click here

OK:

Cornering light operates normally.

OK

REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH

NG

REPLACE HEADLIGHT ASSEMBLY LH

11.

PERFORM ACTIVE TEST USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / HL AutoLeveling (Sub) / Active Test.

(e) Perform the Active Test according to the display on the Techstream.

Body Electrical > HL AutoLeveling (Sub) > Active Test

Tester Display

Measurement Item

Control Range

Diagnostic Note

Cornering Light/Front Side Illuminate Light

Cornering light/front side illuminate light

OFF or ON

-

Body Electrical > HL AutoLeveling (Sub) > Active Test

Tester Display

Cornering Light/Front Side Illuminate Light

OK:

Cornering light turn on.

Result

Proceed to

OK

A

NG (for TMC Made)

B

NG (for TMMK Made)

C

A

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

C

GO TO STEP 14

B

12.

CHECK HEADLIGHT UNIT ASSEMBLY RH

(a) Interchange the headlight unit assembly RH with LH and connect the connectors.

for LED Type Turn Signal Light: Click here

for Bulb Type Turn Signal Light: Click here

NEXT

13.

CHECK OPERATION (CORNERING LIGHT)

(a) Check that the cornering light operates normally.

Click here

OK:

Cornering light operates normally.

OK

REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH

NG

REPLACE HEADLIGHT UNIT ASSEMBLY RH

14.

CHECK HEADLIGHT ASSEMBLY RH

(a) Remove each headlight ECU sub-assembly, interchange the headlight assembly RH with LH and connect the connectors.

Click here

NEXT

15.

CHECK OPERATION (CORNERING LIGHT)

(a) Check that the cornering light operates normally.

Click here

OK:

Cornering light operates normally.

OK

REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH

NG

REPLACE HEADLIGHT ASSEMBLY RH
