Lexus ES (XZ10) Service Manual / Vehicle Exterior / Mirror (ext) / Outer Rear View Mirror Cover / Components
COMPONENTS

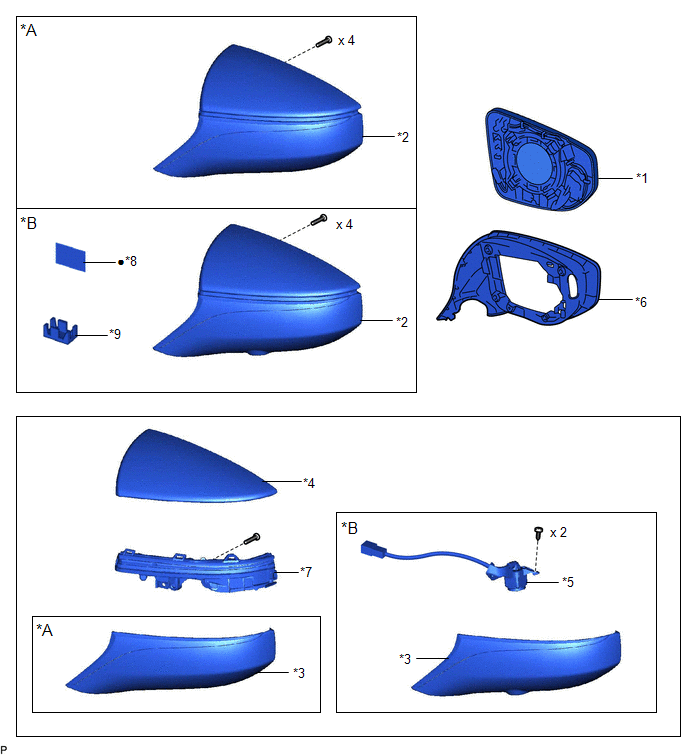

ILLUSTRATION
| *A | w/o Panoramic View Monitor System | *B | w/ Panoramic View Monitor System |
| *1 | OUTER MIRROR | *2 | OUTER MIRROR COVER ASSEMBLY |
| *3 | OUTER MIRROR LOWER COVER | *4 | OUTER MIRROR UPPER COVER |
| *5 | SIDE TELEVISION CAMERA ASSEMBLY | *6 | VISOR COVER ASSEMBLY |
| *7 | SIDE TURN SIGNAL LIGHT ASSEMBLY | *8 | OUTER MIRROR TAPE |
| *9 | CAMERA CONNECTOR CLAMP | - | - |
| ● | Non-reusable part | - | - |
