Lexus ES: Components

COMPONENTS

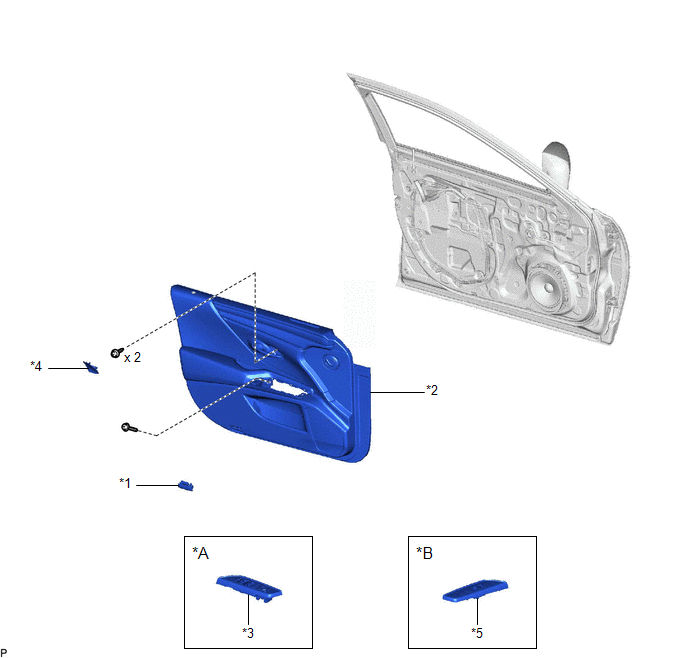

ILLUSTRATION

*A

for Driver Side

*B

for Front Passenger Side

*1

COURTESY LIGHT ASSEMBLY

*2

FRONT DOOR TRIM BOARD SUB-ASSEMBLY

*3

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

*4

NO. 2 DOOR TRIM PAD

*5

POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

-

-

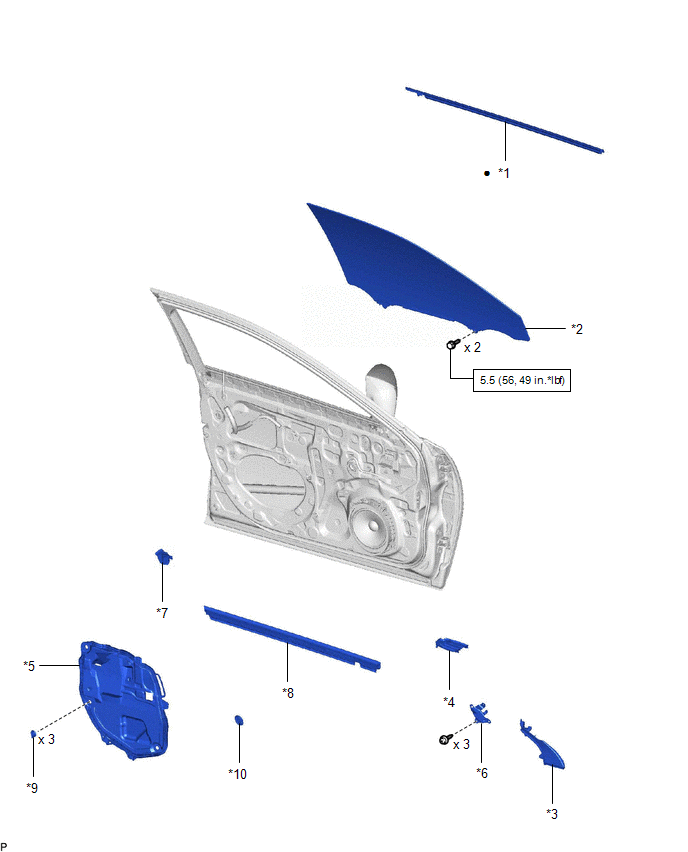

ILLUSTRATION

*1

FRONT DOOR BELT MOULDING ASSEMBLY

*2

FRONT DOOR GLASS SUB-ASSEMBLY

*3

FRONT DOOR LOWER FRAME BRACKET GARNISH

*4

FRONT DOOR PANEL PROTECTOR

*5

FRONT DOOR SERVICE HOLE COVER

*6

FRONT DOOR TRIM BRACKET

*7

FRONT DOOR VENT SEAL

*8

FRONT DOOR INNER GLASS WEATHERSTRIP

*9

FRONT DOOR WEATHERSTRIP CLIP

*10

HOLE PLUG

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part
