Lexus ES: Components
COMPONENTS
ILLUSTRATION

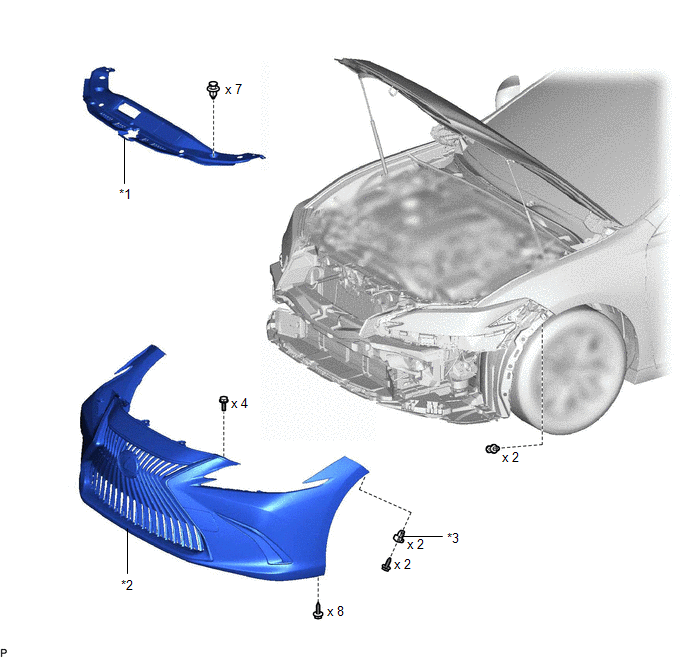

| *1 | COOL AIR INTAKE DUCT SEAL | *2 | FRONT BUMPER ASSEMBLY |
| *3 | FRONT BUMPER SIDE MOUNTING BRACKET | - | - |

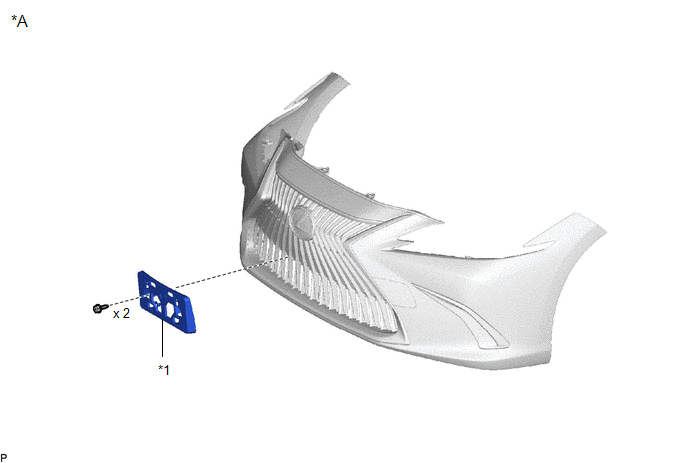

ILLUSTRATION

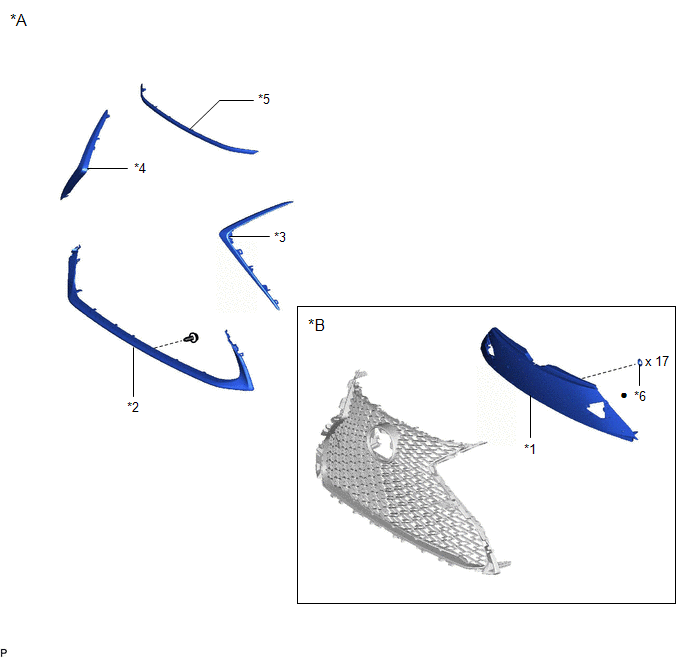

| *A | for Bar Type Radiator Grille | - | - |
| *1 | FRONT BUMPER EXTENSION MOUNTING BRACKET | - | - |

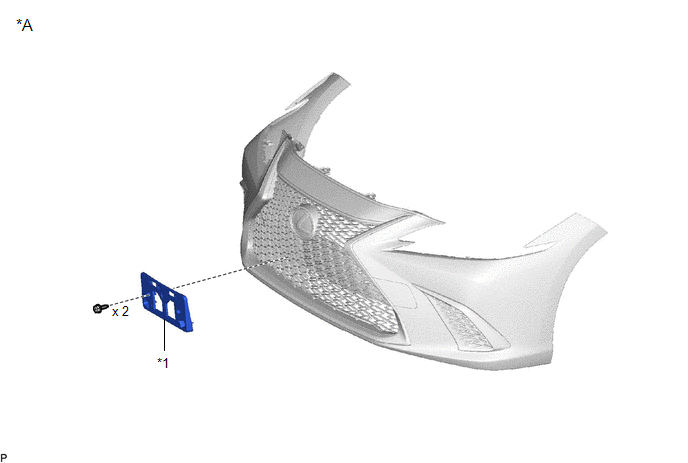

ILLUSTRATION
| *A | for Mesh Type Radiator Grille | - | - |
| *1 | FRONT BUMPER EXTENSION MOUNTING BRACKET | - | - |

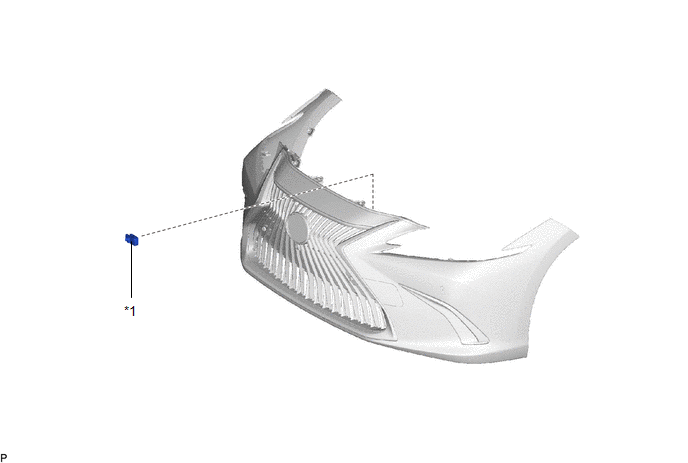

ILLUSTRATION
| *1 | SMOG VENTILATION SENSOR | - | - |

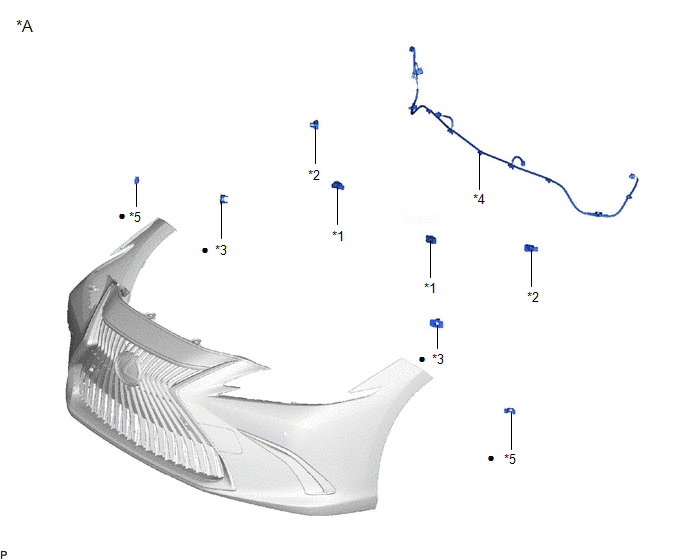

ILLUSTRATION
| *A | w/ Parking Support Alert System | - | - |
| *1 | FRONT CENTER ULTRASONIC SENSOR | *2 | FRONT CORNER ULTRASONIC SENSOR |
| *3 | FRONT CORNER ULTRASONIC SENSOR RETAINER | *4 | NO. 4 ENGINE ROOM WIRE |
| *5 | ULTRASONIC SENSOR CLIP | - | - |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *A | w/ Panoramic View Monitor System | - | - |
| *1 | FRONT TELEVISION CAMERA ASSEMBLY | - | - |

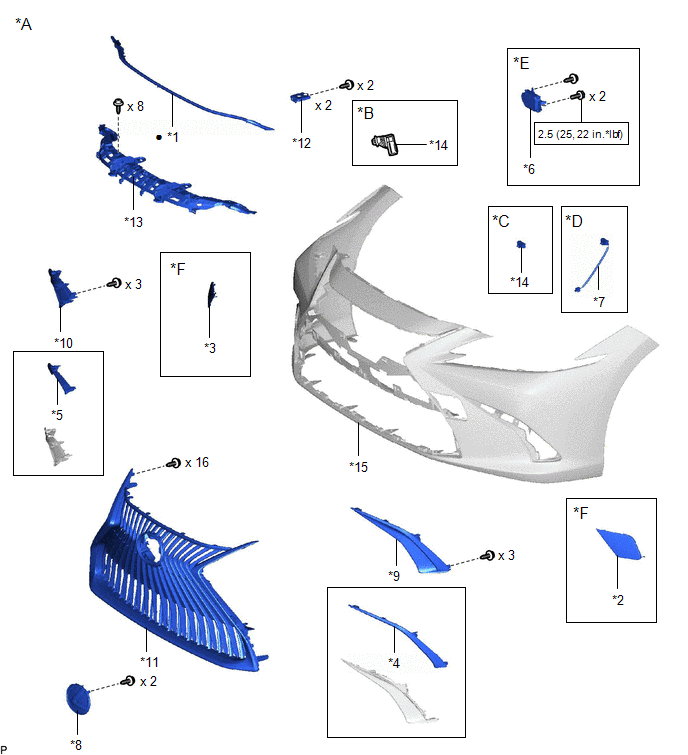

ILLUSTRATION
| *A | for Bar Type Radiator Grille | *B | w/o Parking Support Alert System |
| *C | w/o Panoramic View Monitor System | *D | w/ Panoramic View Monitor System |
| *E | w/ Pre-collision System | *F | for TMC Made |
| *1 | CENTER FRONT BUMPER SEAL | *2 | FRONT BUMPER HOLE COVER LH |
| *3 | FRONT BUMPER HOLE COVER RH | *4 | FRONT BUMPER SIDE MOULDING LH |
| *5 | FRONT BUMPER SIDE MOULDING RH | *6 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *7 | NO. 5 ENGINE ROOM WIRE | *8 | RADIATOR GRILLE (OR FRONT PANEL) EMBLEM |
| *9 | RADIATOR GRILLE GARNISH SUB-ASSEMBLY LH | *10 | RADIATOR GRILLE GARNISH SUB-ASSEMBLY RH |
| *11 | RADIATOR GRILLE SUB-ASSEMBLY | *12 | UPPER FRONT BUMPER RETAINER |
| *13 | UPPER RADIATOR GRILLE | *14 | WIRING HARNESS CONNECTOR |
| *15 | FRONT BUMPER COVER | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

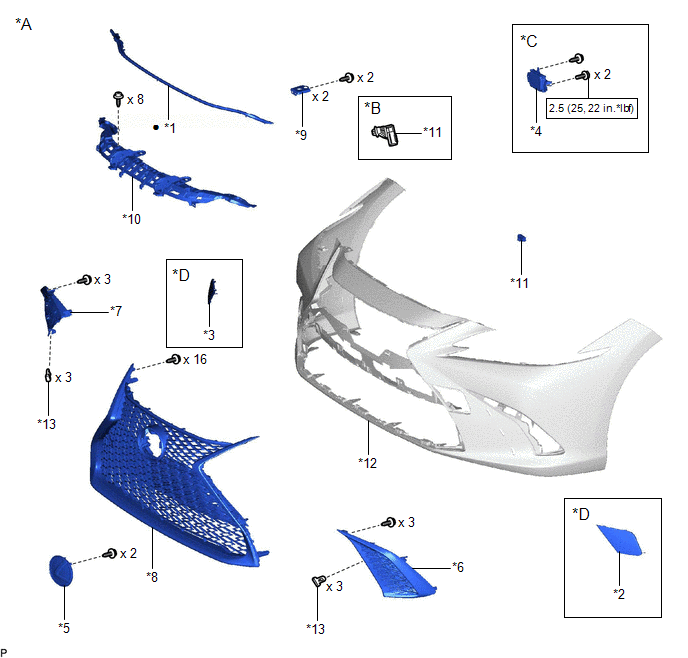

ILLUSTRATION
| *A | for Mesh Type Radiator Grille | *B | w/o Parking Support Alert System |
| *C | w/ Pre-collision System | *D | for TMC Made |
| *1 | CENTER FRONT BUMPER SEAL | *2 | FRONT BUMPER HOLE COVER LH |
| *3 | FRONT BUMPER HOLE COVER RH | *4 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *5 | RADIATOR GRILLE (OR FRONT PANEL) EMBLEM | *6 | RADIATOR GRILLE GARNISH SUB-ASSEMBLY LH |
| *7 | RADIATOR GRILLE GARNISH SUB-ASSEMBLY RH | *8 | RADIATOR GRILLE SUB-ASSEMBLY |
| *9 | UPPER FRONT BUMPER RETAINER | *10 | UPPER RADIATOR GRILLE |
| *11 | WIRING HARNESS CONNECTOR | *12 | FRONT BUMPER COVER |
| *13 | OUTSIDE MOULDING RETAINER | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

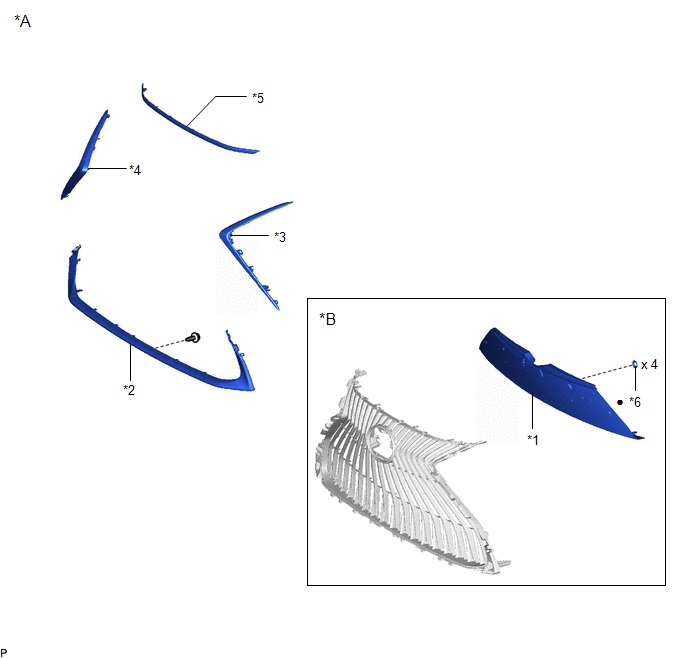

ILLUSTRATION
| *A | for Bar Type Radiator Grille | *B | for TMC Made |
| *1 | INSIDE RADIATOR GRILLE | *2 | LOWER RADIATOR GRILLE MOULDING |
| *3 | RADIATOR GRILLE SIDE MOULDING LH | *4 | RADIATOR GRILLE SIDE MOULDING RH |
| *5 | UPPER RADIATOR GRILLE MOULDING | *6 | SPRING NUT |
| ● | Non-reusable part | - | - |
ILLUSTRATION
| *A | for Mesh Type Radiator Grille | *B | for TMC Made |
| *1 | INSIDE RADIATOR GRILLE | *2 | LOWER RADIATOR GRILLE MOULDING |
| *3 | RADIATOR GRILLE SIDE MOULDING LH | *4 | RADIATOR GRILLE SIDE MOULDING RH |
| *5 | UPPER RADIATOR GRILLE MOULDING | *6 | SPRING NUT |
| ● | Non-reusable part | - | - |

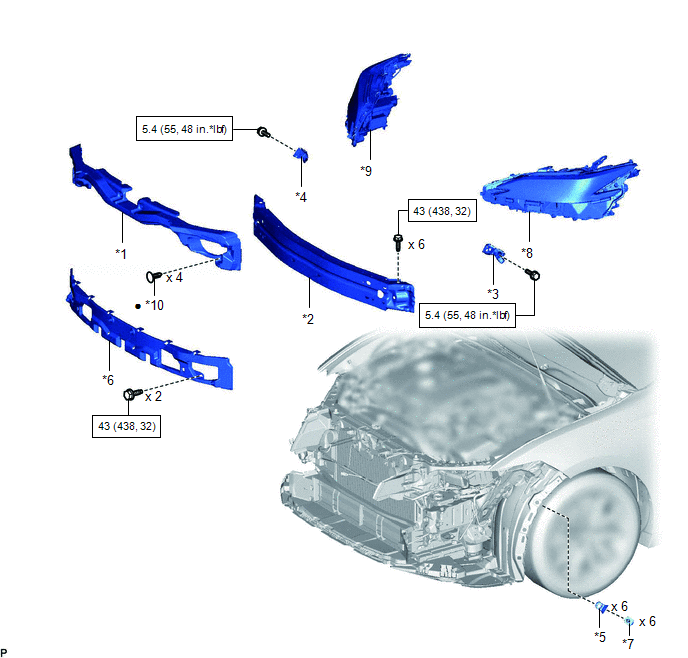

ILLUSTRATION
| *1 | FRONT BUMPER ENERGY ABSORBER | *2 | FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY |
| *3 | FRONT BUMPER SIDE SUPPORT LH | *4 | FRONT BUMPER SIDE SUPPORT RH |
| *5 | FRONT FENDER LINER RETAINER | *6 | NO. 2 FRONT BUMPER MOUNTING BRACKET |
| *7 | PIN HOLD CLIP | *8 | HEADLIGHT ASSEMBLY LH |
| *9 | HEADLIGHT ASSEMBLY RH | *10 | CLIP |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
